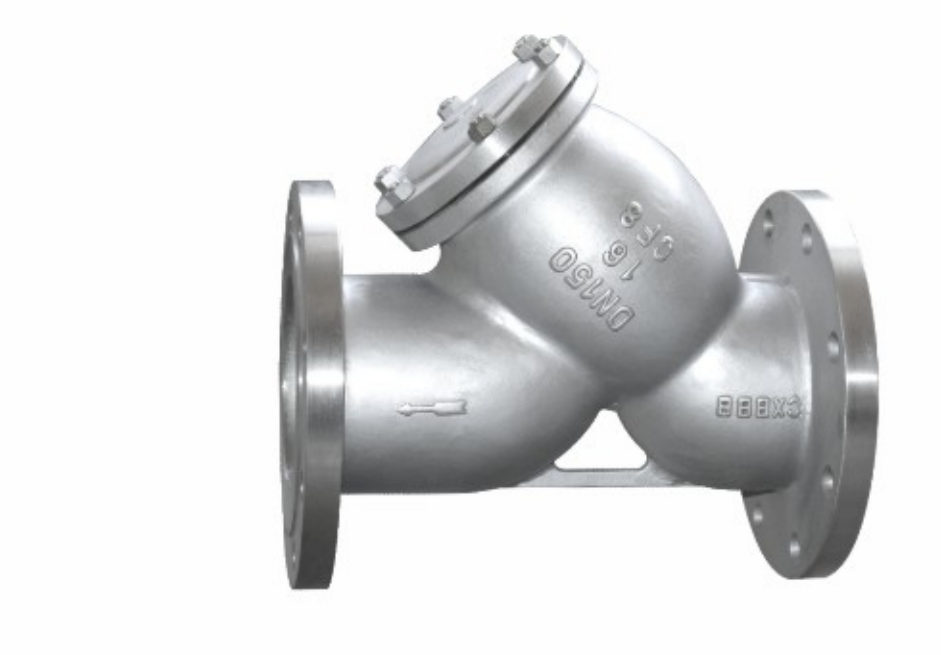

GB Y TYPE FILTER

Products overview
Y type filter is the medium of pipeline system is indispensable to a filtering device, Y type strainer is usually installed in a reducing valve, relief valve and the inlet water valve or other equipment, used to remove the impurity in the medium, in order to protect the valves and equipment normal use. Y type filter has the advanced structure, small resistance and easy drainage, etc. Y type filter suitable medium for water, oil and gas. Generally water network are 18 ~ 30 mu, ventilation network are 10 ~ 100 mesh, oil network 100 ~ 480 mesh. Basket strainer is mainly composed of takeover, director, filter blue, flange, flange cover, and fasteners, etc. When the liquid by supervisorInto the filter can solid impurity particles will be blocked after blue within the blue filter, and clean fluid through the blue filter, the filter outlet.
GL41W-16C/P/R

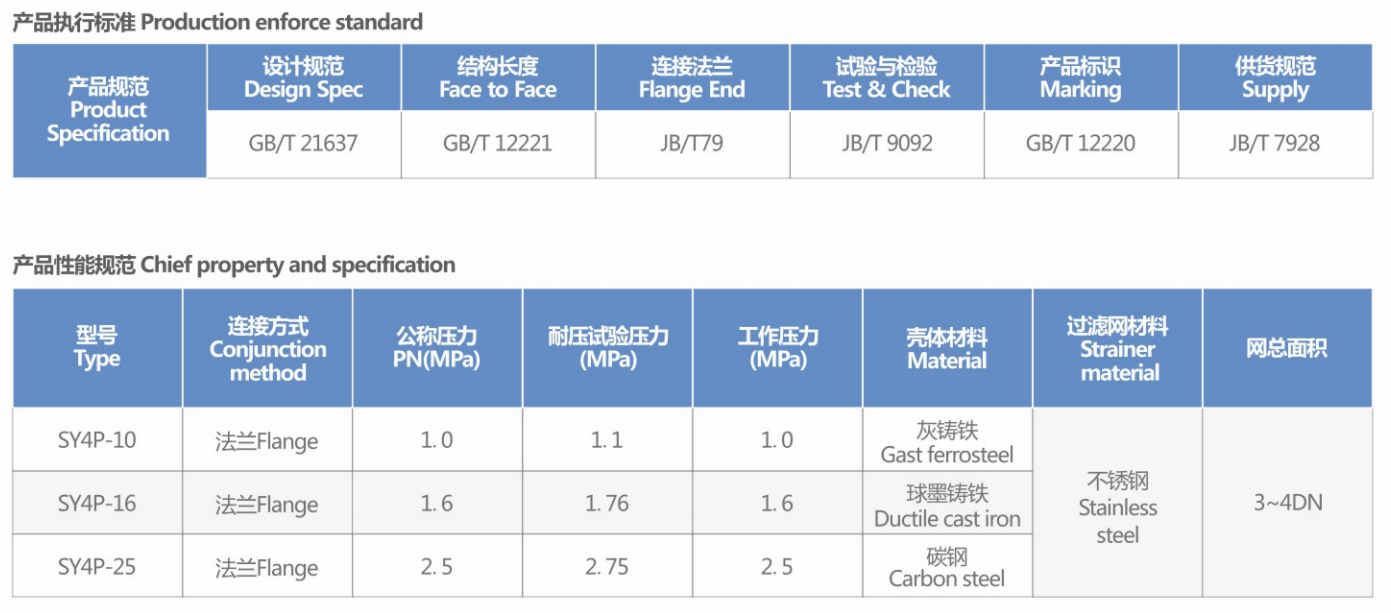

Basic parameters

• Medium temperature: 300 °C)
• Working pressure difference: 2 kg
• Material: stainless steel
• Product alias: Y type filter
• Scope of application: liquid filtration
• Connection: flange
• Type: the right Angle
• Flow direction: one way
• Applicable medium: water
• Pressure: the atmospheric pressure

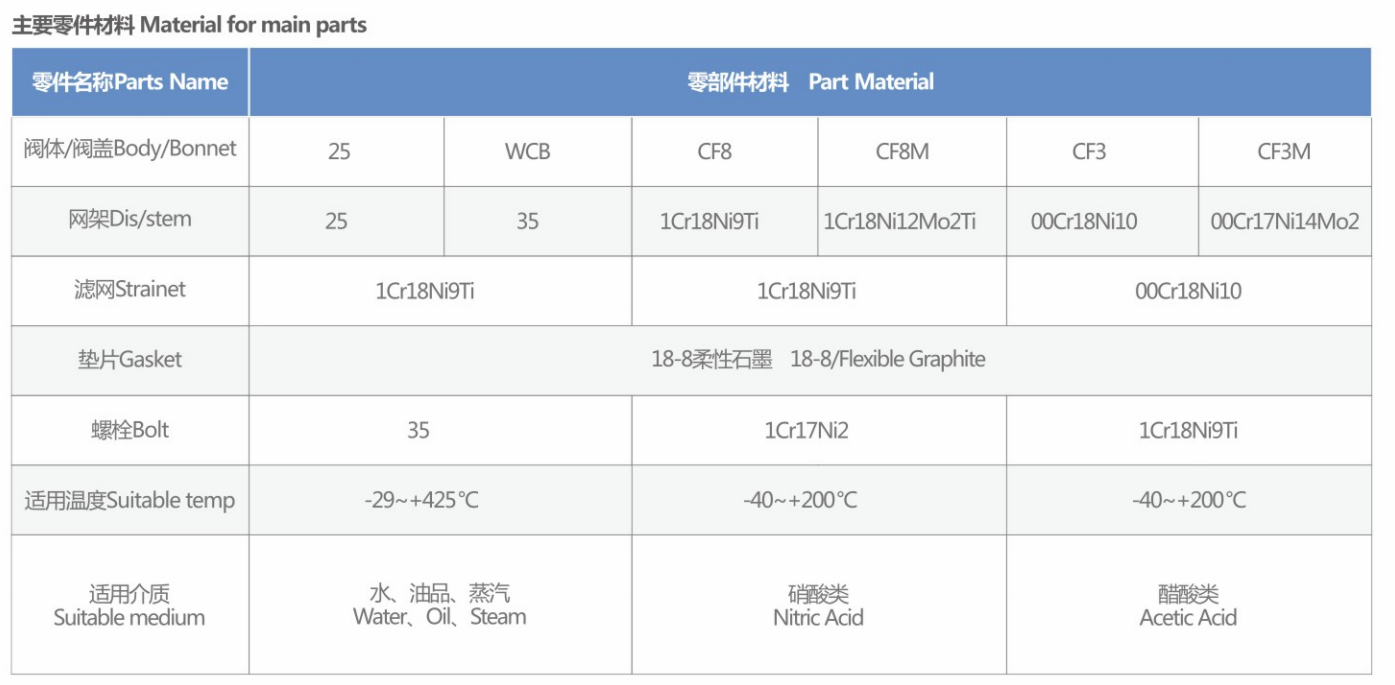

CHEMICAL COMPOSITION AND MECHANICAL PROPERTIES OF STEEL CASTINGS
