T TYPE FILTER
Our world-class
- image
- video
Y TYPE FILTER
T TYPE FILTER
The T-type filter is a small device for removing a small amount of solid particles from liquids, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a filter screen of a certain specification, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is required, just take out the detachable filter cartridge, treat it and reinstall it. Therefore, it is extremely convenient to use and maintain.
Description
Technical parameters:
- 1. Working temperature: ≤90℃
- 2. Nominal diameter: DN25-DN600mm
- 3. Nominal pressure: PN ≤ 1.6Mpa (other working pressures can be designed according to user requirements)
- 4. Flange standard: GB81-59 (can also be manufactured according to user requirements)
- 5. Shell material: A3, 304, 304L, 316, 316L
- 6. Sealing materials: polytetrafluoroethylene, nitrile rubber, oil-resistant asbestos rubber

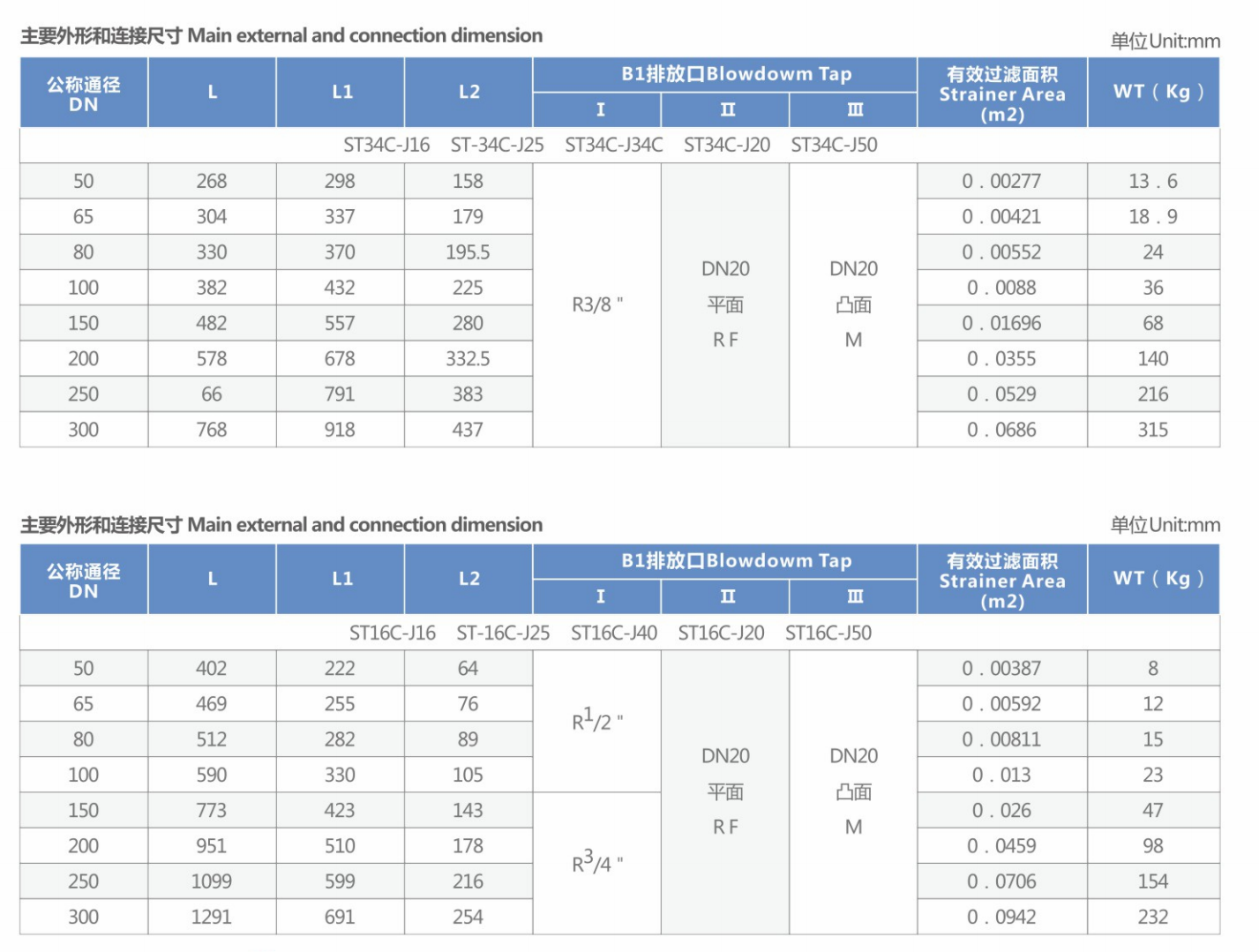

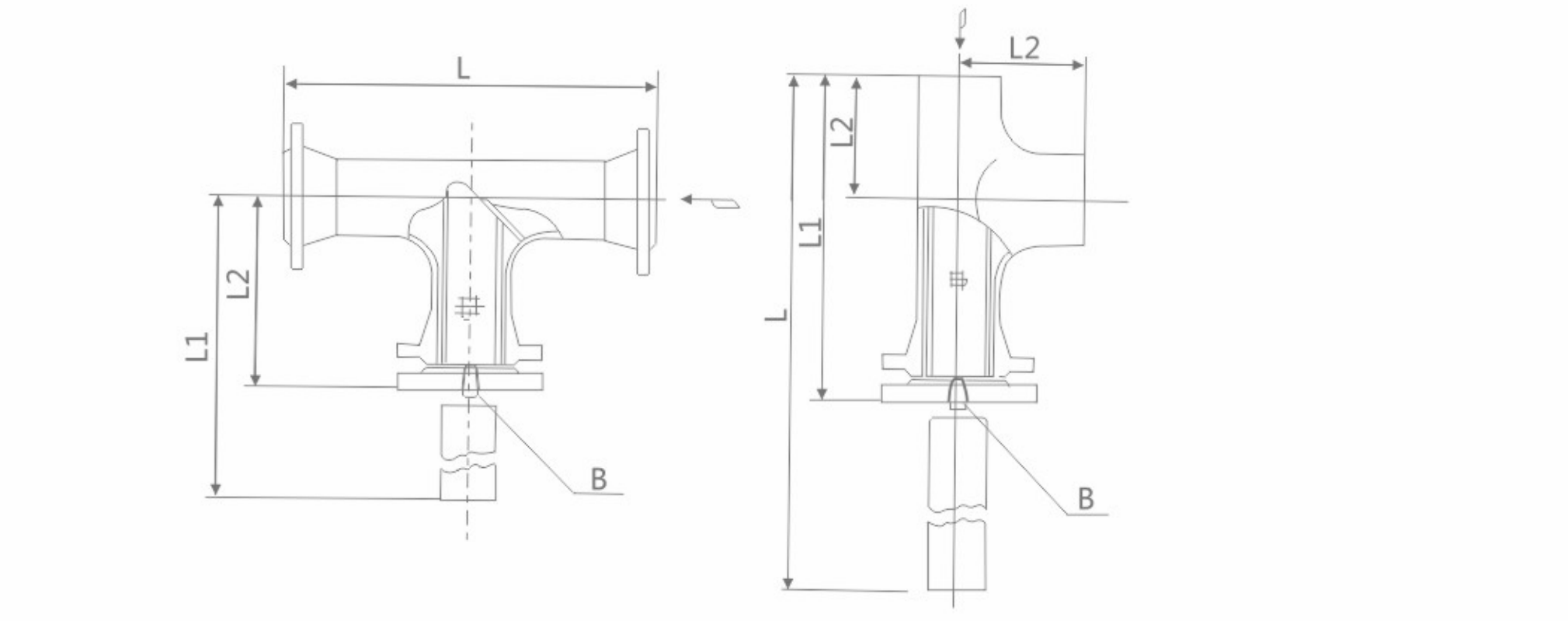

ST16C/ST34C-J16~J50
![]()
![]()
CHEMICAL COMPOSITION AND MECHANICAL PROPERTIES OF STEEL CASTINGS
![]()
