Selecting Corrosion-Resistant Valves for Chemical Industry Applications

Materials Matter: Metals, Plastics, and Linings

No single material is “best” for all corrosive media. The optimal choice depends on the specific chemicals, concentrations, and temperatures in your process. Here’s a comparison of common valve material options:

Stainless Steels (e.g. 304, 316): Stainless steel is the workhorse material for many chemical applications, offering a balance of strength and moderate corrosion resistance. Grades like 316L (with molybdenum) handle chlorides better than 304 in many cases, but even stainless steel has limits. For instance, standard stainless is often not suitable for hydrochloric acid or hot sulfuric acid – it will corrode rapidly. In nitric acid, interestingly, 304 can outperform 316 since molybdenum actually reduces nitric acid resistance. Bottom line: stainless is widely used due to cost-effectiveness, but verify its compatibility with your specific chemicals. It’s best for neutral or mildly corrosive streams and oxidizing acids at moderate temperatures.

High-Alloy Metals: When stainless steel isn’t enough, engineers turn to exotic alloys. Nickel-based alloys like Hastelloy, Inconel, and Monel offer excellent resistance to strong acids, even at high temperatures, but they come at a premium cost. Titanium is another superb corrosion-resistant metal, often used for bleach, chlorine, or seawater service where stainless would pit. Duplex and super-duplex stainless steels provide high strength and improved corrosion resistance in certain environments (like sulfuric acid or sour gas). These high-alloy metal valves are chosen for the most demanding services – e.g. concentrated acids, high-pressure oxidizers – where lesser materials fail quickly. They are durable and reliable, but expect to pay more upfront. In critical production units, though, the extended service life often justifies the investment.

Thermoplastic Valves (PVC, CPVC, PVDF, etc.): Non-metallic valves made from engineered plastics can often outlast metals in highly corrosive environments. Thermoplastics like PVC, CPVC, polypropylene, and PVDF are immune to rust and generally resist a wide range of acids and alkalis. For example, fluoroplastics (PTFE, FEP, PVDF) exhibit outstanding resistance to strong acids like hydrochloric and sulfuric acid across broad concentration ranges. Plastic valves are also much lighter than metal, which can simplify installation in large piping systems. The trade-offs? They typically have lower pressure and temperature ratings (plastic softens or warps at elevated temperatures, and can’t handle very high pressure). They may also be more prone to mechanical wear in high-stress or abrasive services. In the chemical industry, thermoplastic valves are excellent for many low to medium temperature applications involving aggressive chemicals – for instance, PVC and CPVC valves in water treatment or chlor-alkali plants, and PVDF valves for ultra-pure or HF (hydrofluoric acid) lines. Always check the manufacturer’s spec sheets for temperature/pressure limits when considering plastic valves. Internal link example: YNTO offers robust UPVC plastic ball valves that exemplify how thermoplastics can handle harsh chemical duties while being cost-effective and corrosion-proof.

Fluoropolymer-Lined Valves: An elegant solution for highly corrosive service is a lined valve, which marries the strength of a metal body (often cast iron or steel) with an inner lining of PTFE/PFA or similar fluoropolymer. The lining provides a corrosion barrier between the process fluid and the metal body. Lined valves (e.g. PFA-lined ball valves or PTFE-lined butterfly valves) are widely used for strong acids, chlorine, and other ultra-corrosive streams. They can often handle higher pressures than all-plastic valves while offering nearly equivalent chemical resistance. For example, a well-designed fluorine-lined valve is a top choice for concentrated sulfuric acid, where it offers an economical and reliable solution. One must be cautious about operating conditions – temperature limits of the lining (typically up to ~180°C for PTFE) and avoiding vacuum service if the lining is not anchored, as liners can collapse under vacuum. Quality manufacturing is critical to ensure the liner is free of pinholes and properly bonded. When specified and used correctly, lined valves provide an excellent middle ground between metal and plastic: the mechanical integrity of metal with the corrosion resistance of plastic.

Each material option above has its niche. Often, the best approach is to consult compatibility charts or chemical resistance data for the fluids in question and use a materials selection matrix. For example, sodium hypochlorite (bleach) service might call for titanium or alloy 20 stainless, whereas 50% NaOH (caustic soda) could be handled by PVC or carbon steel depending on temperature. If in doubt, involve the valve manufacturer – reputable suppliers like YNTO can recommend the optimal material and valve style based on decades of chemical service experience.

Engineering Considerations for Valve Selection

Beyond choosing the right material, there are several engineering and procurement considerations when selecting valves for corrosive applications:

Process Conditions: Carefully evaluate the chemical concentration, temperature, and pressure of your process. Many materials that resist a chemical at ambient conditions may fail if the fluid is hot or under high pressure. For example, PVC might handle 30% sodium hydroxide at room temp but not at 80 °C. Likewise, 316 SS might survive 20% sulfuric acid at 20 °C but not at 100 °C. Always choose a valve rated for the worst-case operating conditions (and consider upset scenarios).

Valve Type and Design: The design of the valve can influence its corrosion performance. Simpler designs with fewer crevices tend to do better in corrosive service. Diaphragm valves and plug valves, for instance, have no cavities where fluid can accumulate and cause localized corrosion – they are often preferred for slurries and acids. Ball valves offer tight shutoff but the cavities around the ball can trap fluid; for corrosives, one might select a full-port ball valve with cavity fillers or flush ports to prevent fluid entrapment. Butterfly valves present minimal material and are often available in fully-lined versions, making them economical for large-diameter acid lines. Matching the valve style (ball, butterfly, diaphragm, globe, etc.) to the process is important. In many chemical plants, pneumatic diaphragm valves are common for acids and aggressive fluids because the diaphragm (often PTFE or EPDM faced) isolates all the working parts from the fluid. On the other hand, high-pressure reactor feed lines might require forged globe valves in exotic alloys for strength. Consider how each valve type will hold up and whether it has any design features (like bellows seals, linings, or special packing) to enhance corrosion resistance.

Maintenance and Lifecycle: Corrosive services often mean more rigorous maintenance. When selecting valves, think about the life-cycle cost, not just the purchase price. A cheaper cast iron valve might only last months in a hydrochloric acid line, whereas a more expensive plastic or alloy valve could last years – ultimately saving money and downtime. Also consider if the valve is repairable or serviceable. Some lined valves allow replacement of the lining or internals, and many high-end metal valves have service kits for seals/packings. In contrast, thermoplastic valves are sometimes replaced whole if damaged (though they tend to be cheaper). If your maintenance team has standardized on certain valve brands or types for which they stock spare parts, that can influence the selection as well. Ease of maintenance – for example, a top-entry ball valve that allows inspection of internal components without removing the valve body – can be a big plus in a corrosive service where frequent inspections are needed.

 Supplier Quality and Certification: Not all valves are created equal, especially when it comes to corrosion resistance. Ensure that the manufacturer has proper quality controls, material traceability, and relevant certifications. For critical chemical processes, valves might need to meet standards such as API 608 or ISO 15848-1 (fugitive emissions), or carry a CE/PED certification for pressure equipment. Additionally, verify that the materials used (e.g. a Hastelloy C276 valve body) are genuine – reputable suppliers provide material test reports. It’s also wise to see if the supplier offers engineering support for material selection. Companies like YNTO, for instance, specialize in fluid control for extreme environments and can guide clients to the right choice (they’ve supplied everything from stainless control valves to thermoplastic piping systems for corrosive media). Partnering with experienced vendors reduces the risk of mis-selection.

Safety and Regulatory Compliance: In chemical plants, safety is paramount. Consider features that enhance safety in corrosive service. This might include double containment (jackets) for highly toxic fluids, lock-out/tag-out capabilities on manual valves to prevent accidental operation, or pressure relief features for valves that could be isolated and over-pressurized by thermal expansion of trapped fluids. Ensure the selected valves comply with any industry-specific regulations (for example, food-grade requirements if applicable, or environmental regulations for air emission of volatile chemicals). Corrosion-resistant valves are a safety investment – a failure in service could not only halt production but also harm workers or the environment. Hence, slightly over-specifying a valve (choosing a higher grade material or a higher pressure class) can provide an extra factor of safety when dealing with unknowns in corrosive systems.

Conclusion: Smart Selection for Long-Term Success

Selecting the right corrosion-resistant valve for a chemical industry application is a multifaceted decision – it requires balancing material science, process engineering, and economic considerations. The goal is to find a valve that can withstand the chemical attack of the process fluid over many years, while operating reliably and safely. In practice, this means doing your homework: know your process conditions in detail, consult corrosion data (or experts), and don’t be afraid to invest in quality materials where it counts. As the old adage goes, “paying a little more upfront for the right valve can save you exponentially in the long run.”

Fortunately, modern valve technology offers many solutions. From advanced alloys to fluoropolymer-lined valves and high-performance thermoplastics, today’s engineers have a toolkit of options to combat corrosion. By applying the tips discussed – selecting proper materials, matching valve design to service, planning for maintenance, and choosing trusted suppliers – B2B procurement specialists and plant engineers can significantly extend the service life of valves in corrosive duty. The result is improved safety, fewer unplanned shutdowns, and a better bottom line for the operation.

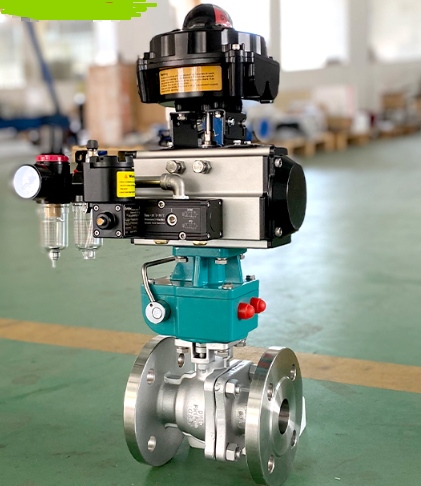

YNTO has extensive experience in this arena, providing chemical plants with tailored valve solutions. Whether it’s a stainless steel ball valve for high-pressure acid (like the YNTO thin-wall pneumatic ball valve) or a thermoplastic diaphragm valve for a corrosive wastewater stream, leveraging expert guidance can ensure you get the optimal valve. In the battle against corrosion, knowledge and quality equipment are your best allies. Make informed choices, and your valves will reward you with safe and trouble-free service even in the harshest chemical environments.
