PFA Diaphragm Valve Wet Clean vs. Traditional Methods: A Comparison

Introduction

Walking through a semiconductor plant or a pharmaceutical filling line, an engineer will often notice tell‑tale signs that something isn’t right. Pressure gauges swing erratically as residual chemicals boil off in dead legs. Manual valve handles feel gritty and require a firm tug to break the seal. Operators complain that flow control in ultra‑pure lines drifts out of specification after a few batches. In many cases these symptoms trace back to the same root cause – deposits and corrosion inside the valves used to control high‑purity or highly corrosive fluids. Traditional metal or elastomer‑lined valves must be removed from the line and disassembled for cleaning, yet pockets of slurry or concentrated acid still remain. Over time, this build‑up causes fluctuating pressure, erratic torque and premature seal failure.

Process engineers have learned that the choice of valve and the cleaning method are critical to maintaining product quality and equipment reliability. One option gaining popularity is the PFA diaphragm valve. These valves combine the crevice‑free geometry of a diaphragm with wetted parts made from perfluoroalkoxy alkane (PFA), a fluoropolymer known for high purity and chemical resistance. Paired with wet‑clean or clean in place technology, PFA diaphragm valves can reduce downtime, improve cleaning efficiency and extend service life. This article compares the wet‑clean approach with conventional cleaning methods and explains why PFA diaphragm valves are becoming the preferred solution in sanitary and high‑purity fluid transfer systems and other high‑purity applications.

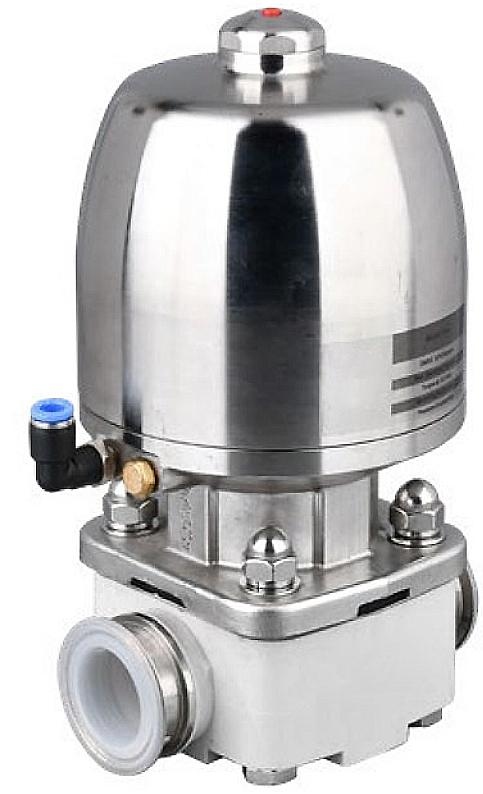

In addition to high‑purity systems, engineers in food and biotechnology routinely specify sanitary diaphragm valves. The following sections highlight how their CIP‑ready design improves hygiene and process control.

Definition of PFA Diaphragm Valves

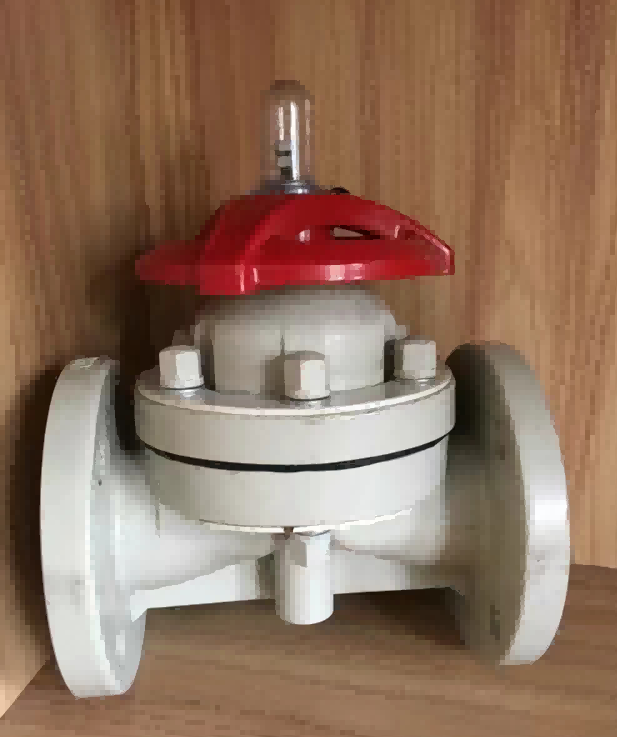

A diaphragm valve isolates the process medium from mechanical components using a flexible diaphragm that presses against a weir or sealing bead. Because the fluid only contacts the diaphragm and valve body, there are no cavities or sliding seals where particles can accumulate. In high‑purity applications, the materials of construction must also resist chemical attack and not leach impurities into the fluid. PFA (perfluoroalkoxy alkane) is a melt‑processable fluoropolymer related to PTFE (Teflon). The Zenith PFA valve guide notes that PFA combines PTFE’s chemical inertness with improved mechanical properties and processability. PFA is more flexible and resistant to cracking than PTFE and has higher purity, making it ideal for ultra‑clean environments. It is semi‑transparent, allowing operators to verify fluid flow visually, and its non‑stick surface prevents viscous fluids from adhering to valve walls.

Unlike metal‑body valves, PFA diaphragm valves have all‑PFA wetted surfaces, which eliminates risk of metal contamination. The flexible diaphragm (often also PFA) seals against the valve seat, and the body design eliminates dead pockets where media or cleaning agents could stagnate. According to high‑purity valve experts at FCX Performance, the crevice‑free design of diaphragm valves supports clean in place technology and sterilization‑in‑place (SIP) operations, minimizing the risk of product exposure or contamination.

Importance in Chemical‑Resistant Applications

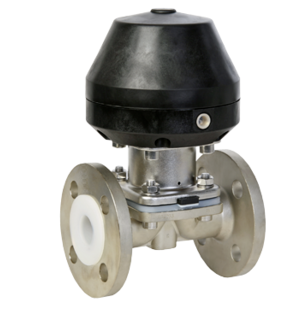

Certain processes subject valves to strong acids, oxidizers and solvents at elevated temperatures. Traditional metals or elastomers can suffer rapid corrosion, leaching or swelling in these environments. PFA‑lined valves are specifically designed for such duty. The Saunders® PFA‑lined valve product page explains that PFA has the highest chemical resistance of all their linings and is ideal for high‑purity applications, including concentrated strong acids at high temperature. The same source notes that the bodies are glandless and maintenance‑free, eliminating inline and external leakage. This makes them suitable for handling aggressive chemistries in semiconductor wet benches, pharmaceutical API synthesis, and chemical delivery systems.
For readers seeking products specifically designed for these demanding services, chemical resistant valves offer enhanced protection against corrosion and leaching.

Manufacturers highlight additional benefits. The Zenith PFA valves provide chemical corrosion resistance against hydrochloric, hydrofluoric and nitric acids. They are rated for temperatures above 100 °C and ambient conditions up to 60 °C, ensuring stable operation in hot acid baths. These materials do not corrode or produce extractables, so ultra‑pure water or reagents remain uncontaminated. In addition, PFA diaphragms offer superior flexural life. Parker’s microelectronics selection guide states that their ¼‑inch PFA diaphragm valves provide over five times the flexural life compared to conventional PTFE. Such durability is crucial when valves cycle thousands of times per day.

Traditional Cleaning Techniques

Overview of Common Practices

Before the advent of CIP‑ready valves, cleaning involved shutting down the process, removing valves and fittings, and manually scrubbing or chemically bathing each component. In high‑purity sectors, technicians would flush lines with solvent or deionized water, dismantle the valve, then soak and brush the internal surfaces. Steam‑in‑place (SIP) might follow to remove microorganisms. While effective at removing gross contamination, this method is labor‑intensive, time‑consuming and prone to human error. Small crevices or threaded connections trap solids that resist flushing. Reassembly introduces the risk of improper torque or misalignment, and each cycle subjects seals and threads to wear.

Limitations of Conventional Methods

Engineers regularly observe that manual cleaning leaves behind films that cause downstream problems. For example, in a chemical delivery skid using PTFE‑lined valves, differential pressure sensors recorded fluctuations of several psi during rinse cycles. On inspection, the diaphragm had cracked and product had seeped behind the liner, creating a pocket of crystallized acid that restricted flow. The root cause was repeated disassembly and cleaning, which stressed the PTFE diaphragm and allowed corrosive attack. Another case involved a pharmaceutical fill line where operators noticed that at low flow rates the valve tended to “stick” closed. Investigation revealed biofilm in the valve bonnet – a consequence of incomplete draining and insufficient surface finish.

Traditional cleaning also wastes resources. To ensure thorough rinsing, large volumes of water and detergent must be flushed through the system. Valves must cool down before removal and be revalidated before service. Production downtime can range from hours to days, translating into lost revenue.

Advantages of Wet Cleaning with PFA Diaphragm Valves

Enhanced Hygiene in Fluid Transfer Systems

Wet cleaning, or CIP, allows equipment to be cleaned without disassembly. A circulating loop delivers detergents, acids and rinse water at controlled temperatures and flow rates. When paired with PFA diaphragm valves, CIP becomes especially effective. The smooth, non‑stick surfaces of PFA prevent sticky or viscous fluids from adhering to the valve walls. High‑purity fluids therefore rinse away easily, leaving no residue. Because the diaphragm valve’s fluid path is completely contained, CIP solutions contact all wetted surfaces without exposing the process media to the environment.

FCX Performance’s analysis of high‑purity valves states that diaphragm valves’ crevice‑free design supports CIP and SIP operations and minimizes the risk of contamination. A flexible PFA diaphragm seals against a weir, isolating the process medium from the mechanical parts. In practice, this means cleaning solutions can flush the valve body and the underside of the diaphragm without bypassing actuators or springs. For ultra‑pure water systems or sterile fluid transfer, that isolation is critical. Any particles generated by actuation or corrosion remain outside the wetted path.

Wet cleaning also addresses the root causes of the engineering problems described earlier. By eliminating dead pockets, CIP with PFA valves prevents crystallization or biofilm growth that would otherwise cause torque increases, sticking or micro‑leaks. Because PFA valves are non‑metallic, there is no risk of corrosion products contaminating the process. Operators report stable pressure profiles after implementing CIP with PFA valves, and maintenance intervals extend from months to years.

Clean‑in‑Place Technology Benefits

The benefits of CIP extend beyond hygiene. Automated CIP sequences reduce labour and ensure consistent results. A typical sequence might include a pre‑rinse to remove bulk residue, a caustic wash to dissolve organic deposits, an acid wash to remove mineral scale, and a final rinse. Sensors monitor conductivity or pH to control phase transitions. With PFA valves, all of these fluids – from caustic sodium hydroxide to dilute hydrofluoric acid – are compatible because PFA exhibits broad chemical resistance.

Because CIP does not require valve removal, production downtime is minimal. In pharmaceutical facilities, CIP cycles can occur between batches without breaking sterile containment. For semiconductor fabs, CIP allows wet benches and chemical mechanical polishing (CMP) lines to quickly switch chemistries without cross‑contamination. The Zenith PFA valves article points out that PFA’s excellent non‑stick characteristics help prevent blockages during such transitions, further reducing cleaning time.

Performance Comparison

Cleaning Efficiency

When comparing manual cleaning to wet cleaning with PFA diaphragm valves, the difference in cleaning efficiency is dramatic. Manual cleaning relies on mechanical scrubbing and solvent immersion. Even with meticulous attention, tiny cavities and threaded areas remain untouched. PFA diaphragm valves lack these cavities, and CIP flow sweeps across every wetted surface. CIP also allows for high flow velocities and turbulent flushing, which improve mass transfer and shorten cleaning times.

Another measure of efficiency is how completely deposits are removed. In manual cleaning, visual inspection is the primary verification method. With CIP, engineers can monitor conductivity, total organic carbon or particle counts in the rinse water to ensure that residues are below detection limits. Because PFA valves have smooth surfaces and no elastomeric seals, there are fewer sites for adsorption, so rinse endpoints are reached faster. Parker’s catalog lists PFA diaphragm valves with full orifices (¼ in., ½ in., ¾ in. and 1 in.) that provide maximum flow in compact packages. High flow rates accelerate cleaning, while the diaphragm material’s superior flexural life means valves maintain seal integrity through repeated CIP cycles.

Resource Utilization

Wet cleaning does require process water and cleaning agents, but these are usually recirculated and recovered. The overall resource consumption is lower than manual cleaning when downtime and replacement parts are considered. Manual disassembly often damages seals and threads, necessitating new gaskets and sometimes entire valve bodies. By contrast, PFA valves can remain in service for years. The Saunders® PFA‑lined valve documentation emphasises that their glandless maintenance‑free design eliminates inline leakage, reducing the need for spare parts.

Energy use is also lower in CIP because heating cycles are optimized and there is no need to heat large cleaning baths. Automated controls ensure that water usage and chemical concentrations are just sufficient to achieve cleanliness. Over time, the savings in labour, chemicals and replacement parts can more than offset the initial investment in PFA valves and CIP skid.

Hygienic Valve Design Considerations

Features of PFA Diaphragm Valves

Manufacturers of PFA diaphragm valves incorporate features that directly address hygiene, durability and performance:

· Chemical corrosion resistance. Zenith lists compatibility with hydrochloric, hydrofluoric and nitric acids. PFA valves maintain integrity in aggressive chemical delivery systems, CMP slurry lines and cleaning stations.

· Thermostability. Zenith states that PFA valves operate above 100 °C with ambient ratings to 60 °C, making them suitable for hot acid baths and CIP cycles.

· Excellent flow control. Flow coefficients are high (CV up to 0.34), pressure loss is minimal, and valves are adjustable from 912 mbar to 7 bar (100 PSIG). Parker’s series offers full orifices to maximize flow.

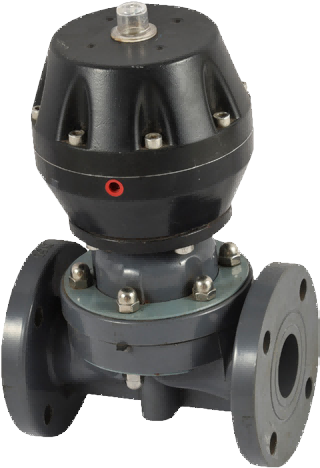

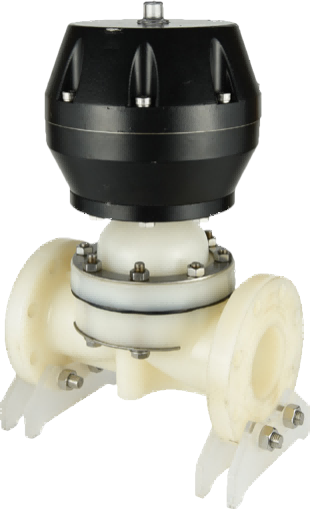

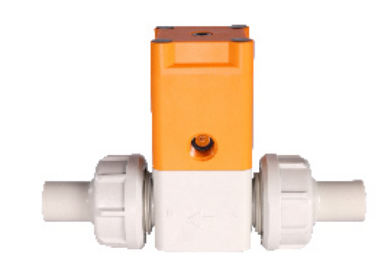

· Multiple configurations. Products include manual and pneumatically actuated versions, 2‑way and 3‑way, inline and angle, with connections like Parflare, Pargrip or FNPT. Sizes from ¼ in. to 1 in. meet different flow requirements.

· Long flexural life. PFA diaphragms provide more than five times the flexural life of PTFE diaphragms, reducing the risk of fatigue cracks.

· Low dead volume and crevice‑free geometry. FCX notes that diaphragm valves prevent particle generation by containing the fluid path. Saunders adds that their glandless design eliminates external leakage.

· Traceability and regulatory compliance. Saunders emphasises FDA‑approved traceability for PFA valves. Many manufacturers offer CE, ISO and ASME certifications and optional conductive grades for static dissipation.

Engineers who adhere to the principles of hygienic valve design must consider more than just the wetted path. When specifying valves for high‑purity systems, they also evaluate materials for the non‑wetted parts. Stainless steel grades like 316L provide structural strength and meet ASME BPE surface finish requirements, while actuators may be aluminum or plastic to reduce particle shedding. In corrosive chemical plants, super duplex steels or Hastelloy can be used for bonnet components, and fasteners may be PTFE‑coated to resist corrosion. Standards such as ANSI/ASME, API, ISO and DIN dictate pressure ratings, face‑to‑face dimensions and testing protocols, ensuring compatibility and safety across equipment.

Implications for Ultra‑Pure Fluid Handling

For truly ultra‑pure fluid handling, water, photoresist developers and pharmaceutical buffers are extremely sensitive to contamination. Even trace metal ions or organic extractables can ruin a semiconductor wafer or compromise a vaccine. Because PFA valves have no metal in the wetted path, there is minimal risk of leaching. The semi‑transparent body allows operators to verify that no bubbles or particulates remain after CIP. Zenith notes that PFA’s non‑stick nature prevents blockages, ensuring consistent flow and avoiding micro‑vibrations that lead to valve wear.

In addition, the ability to integrate PFA valves into modular manifolds reduces the number of connections and potential leak points. Parker offers PFA diaphragm valves with purge ports and multiple mounting options. In semiconductor chemical distribution boxes, these valves can be grouped to minimize dead volume and allow sequential flushing. For ultra‑pure water systems in biotechnology, the crevice‑free geometry supports SIP; superheated steam can sterilize the valve without damaging the PFA components. When combined with clean‑in‑place technology, these design features enable continuous operation with minimal manual intervention.

Future Trends in Valve Technology

Innovations in Sanitary Designs

The next generation of sanitary diaphragm valves goes beyond material improvements. Manufacturers are developing integrated sensor valves where pressure, temperature and conductivity probes are built into the valve body to monitor process conditions in real time. 3D‑printed PFA and PTFE components allow designers to create complex flow paths with zero dead volume. Surface finishing techniques such as plasma etching further reduce surface roughness, decreasing the likelihood of particle shedding. There is also movement toward single‑use diaphragm valves made from high‑grade polymers, as highlighted by FCX. These valves can be installed for a single batch and then discarded, eliminating cleaning validation and cross‑contamination.

The Role of Automation in Cleaning

Automation is transforming CIP from a manual recipe to an adaptive process. Modern CIP skids incorporate programmable logic controllers (PLCs) that adjust flow rates, temperatures and chemical dosages based on sensor feedback. Machine learning algorithms predict fouling and schedule cleaning cycles before performance degrades. Valves are linked via digital networks, and actuators report cycle counts and torque curves to maintenance systems. For PFA diaphragm valves, this means cleaning sequences can be precisely tailored to the material’s tolerance; for example, ramping temperature slowly to avoid thermal shock. Automated air purge at the end of the cycle can leave the system dry, reducing microbial risk. In the future, expect fully integrated valve‑manifold assemblies where each port’s cleaning status is reported to a central dashboard.

Conclusion

Comparative Insights

Traditional valve cleaning relies on disassembly, soaking and manual scrubbing. This approach leaves residues, consumes large amounts of water and chemicals and shortens valve life. Engineers often observe pressure fluctuations, increased torque, sticking and premature seal failure due to deposits and corrosion. In contrast, wet cleaning with PFA diaphragm valves provides a closed, crevice‑free flow path that is compatible with automated CIP and SIP processes. PFA’s chemical resistance and non‑stick surface prevent deposits and allow cleaning solutions to reach every wetted area, resulting in more consistent and thorough cleaning. Parker’s microelectronics guide highlights that PFA diaphragms offer five times the flexural life of PTFE, while Saunders emphasises that their glandless PFA valves eliminate leakage and are suitable for strong acids. Zenith’s article notes that PFA valves combine chemical resistance, high purity and temperature performance and have longer service life. FCX po

Best Practices Moving Forward

For engineers designing or upgrading high‑purity and sanitary systems, the following practices are recommended:

1. Choose appropriate materials. For corrosive fluids or ultra‑pure water, select PFA‑lined or all‑PFA diaphragm valves to ensure chemical resistance and avoid metal contamination. Consider 316L or super duplex for non‑wetted components and specify compliant surface finishes.

2. Design for cleanability. Minimize dead legs and choose valves with crevice‑free geometry and full orifices. Integrate purge ports and mounting options to facilitate complete draining.

3. Implement clean‑in‑place technology. Automate CIP sequences to ensure reproducible cleaning. Use sensors to monitor rinse endpoints and adjust cycles based on contamination levels.

4. Plan for life‑cycle maintenance. Take advantage of PFA diaphragms’ long flexural life and track cycle counts. Replace valves proactively based on performance trends rather than waiting for failure.

5. Comply with standards. Follow ANSI/ASME, API and ISO guidelines for pressure ratings, welding and testing. Document materials and cleaning procedures for regulatory audits.

By pairing PFA diaphragm valves with wet‑cleaning strategies, facilities handling ultra‑pure or highly corrosive fluids can achieve higher cleanliness, reduce downtime and extend equipment life. In an era where contamination control directly impacts yield and patient safety, such investments pay dividends.
