Energy-Saving, Smart & Sustainable: Top Valve Trends in 2025

Energy-Saving Valve Technology

Energy efficiency is a top priority in 2025’s valve designs. Companies are introducing valves and actuators that deliver the same (or better) performance while consuming significantly less power. One approach is optimizing flow passages and seals to reduce pressure drop and leakage, thus cutting the pumping energy required. Modern actuators are also getting upgrades – for instance, brushless motor actuators offer higher efficiency and lower friction compared to traditional motors. This means valves can operate with less electrical or pneumatic power, translating to tangible energy savings over thousands of cycles.

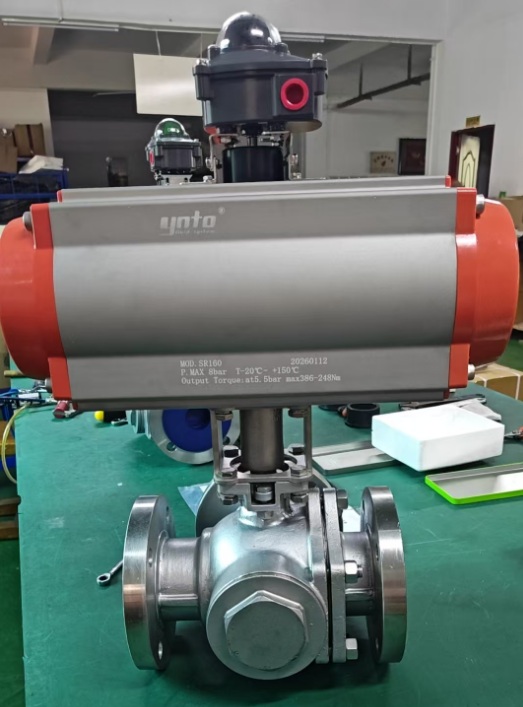

Alt text: A modern pneumatic ball valve with actuator, illustrating an energy-efficient valve assembly design.

In addition, advanced surface coatings and materials are being used to lower friction between moving parts. Low-friction coatings and improved seal designs ensure valves require less force (and thus less energy) to open or close. For example, ISO 5211-compliant electric actuators with optimized gearing have been shown to reduce power consumption by up to 40% in water treatment plants. Engineers are also paying attention to minimizing fugitive emissions – valves that seal tighter and leak less not only prevent product loss but also avoid energy waste in maintaining system pressure. Energy-saving features like these cut operational costs and simultaneously align with corporate sustainability goals.

Internal link example: Many of these innovations can be found in today’s electric control valves and pneumatic control valves, which are built to deliver precision flow control with minimal energy input. By upgrading to such energy-efficient models, facilities can improve their overall energy profile while maintaining reliable performance.

Smart IIoT-Based Control Valves

The Industrial Internet of Things (IIoT) has reached the valve industry in a big way. Smart valves embedded with sensors and wireless connectivity are becoming increasingly common on factory floors and inside pipelines. In fact, by 2025 an estimated 45% of industrial valves will integrate IoT connectivity, creating a $12 billion “smart valve” market. These IIoT-enabled control valves can transmit real-time data on parameters like position, pressure, temperature, and even vibration, allowing for remote monitoring and predictive maintenance.

Imagine a network of critical valves in a chemical plant continuously reporting their health status to a central dashboard. If a valve begins to stick or a seal starts to wear, the system flags it before a failure occurs, preventing unplanned downtime. Case studies have shown that such smart control valves can reduce maintenance costs significantly – one European chemical plant cut maintenance costs by 25% using AI-powered valves that self-adjust based on real-time conditions. The ability to automatically modulate flow rates based on sensor feedback means processes become more responsive and optimized, reducing waste and improving safety.

Another aspect of smart valves is their integration with advanced control systems and digital twins. Valve manufacturers are developing software that creates a “digital twin” of the valve – a virtual model that mirrors the valve’s real-time performance. Engineers can simulate adjustments on the digital twin to see how the valve (and the process) will respond, enabling fine-tuning without interrupting operations. This level of control and insight was unheard of a decade ago.

From a procurement perspective, investing in IIoT-capable valves is about future-proofing. Buyers are seeking out “plug-and-play” smart valves that can easily integrate with SCADA systems and IoT platforms. For example, modern electric control valves often come with built-in positioners and sensor packages ready to connect to a plant’s network. Similarly, next-generation actuators now support standard communication protocols for remote operation and diagnostics. These smart valves and actuators deliver not just fluid control, but also valuable data – a dual benefit that is driving their adoption across industries.

Sustainable & “Green” Valve Trends

Sustainability has become a core theme in valve development as industries strive to reduce their environmental footprint. One major trend is the use of eco-friendly, durable materials that extend valve life and enable new green applications. For instance, the rise of hydrogen energy and carbon capture has spurred demand for special valve solutions – cryogenic valves capable of handling liquid hydrogen at –253 °C, and high-pressure CO₂ valves for carbon capture systems. Traditional valve materials would fail in these extreme conditions, so manufacturers are developing new alloys and designs to ensure reliability. Leading firms have already introduced hydrogen-ready valves and CO₂-resistant models to meet these decarbonization needs.

Beyond serving new industries, valves themselves are becoming greener. Low-leakage designs minimize methane or VOC emissions, helping companies meet stricter regulations on fugitive emissions. Manufacturers are also focusing on recyclability and modularity – for example, designing valves with recyclable metals or plastics, and modular components that can be replaced individually instead of discarding the entire valve. Such designs extend the product lifespan and reduce waste, aligning with circular economy principles.

Material selection is central to sustainable valve design. Stainless steel remains the workhorse for many chemical processes, but it has limits in certain corrosive environments. Increasingly, engineers turn to exotic alloys or linings for more aggressive media. Valves made from Hastelloy, titanium, or duplex stainless steel provide superior corrosion resistance for aggressive acids and alkalis. At the same time, fluoropolymer-lined valves (PTFE/PFA linings inside metal bodies) offer a cost-effective way to handle extremely corrosive fluids like hot sulfuric acid, by combining metal strength with an inert lining. In fact, fluoroplastics are often recommended as the most economical choice for concentrated sulfuric acid service. On the other hand, for strong oxidizing acids like nitric acid, standard 304 stainless steel can outperform even molybdenum-bearing 316 stainless – a reminder that more alloying isn’t always better in certain media. The key is to match the material to the process: valves that resist corrosion and wear will last longer, reducing the environmental and financial cost of frequent replacements. Today’s best corrosion-resistant valves maintain integrity in harsh service for years longer than older designs, which means less downtime and less scrap in the long run.

Internal link example: YNTO has embraced these sustainable trends in its product lineup – from non-toxic thermoplastic valves for corrosive fluids to metal-seated valves engineered for extreme longevity. For example, the company’s pneumatic control valves can be supplied in duplex stainless steel or with PTFE linings for acid service, ensuring that chemical plants operate safely with minimal environmental risk. By choosing valves built for sustainability, businesses also demonstrate a commitment to corporate social responsibility and regulatory compliance.

Conclusion

The valve industry in 2025 sits at the intersection of efficiency, intelligence, and sustainability. Energy-saving innovations are cutting operating costs and conserving power. Smart, IoT-enabled valves are transforming maintenance from reactive to proactive, while giving engineers unprecedented visibility into their systems. And sustainable materials and designs are allowing valves to last longer and perform in new green applications – from hydrogen fueling stations to eco-friendly chemical production.

For B2B procurement teams and industrial engineers, these trends offer both an opportunity and a challenge. The opportunity is to upgrade infrastructure with valves that boost productivity and align with environmental goals. The challenge is ensuring these new technologies are compatible with existing systems and truly deliver on their promises. It’s wise to partner with reputable valve suppliers who have proven expertise in these domains.

Companies like YNTO, with 25+ years in fluid control and a track record of innovation, are helping lead this wave. Whether it’s an energy-efficient brushless actuator, a network of smart control valves, or a corrosion-proof valve for a chemical plant, the trends of 2025 make one thing clear: the humble valve is now a high-tech linchpin of industrial sustainability and performance. Embracing these advancements will be key for any operation looking to thrive in the years ahead.
