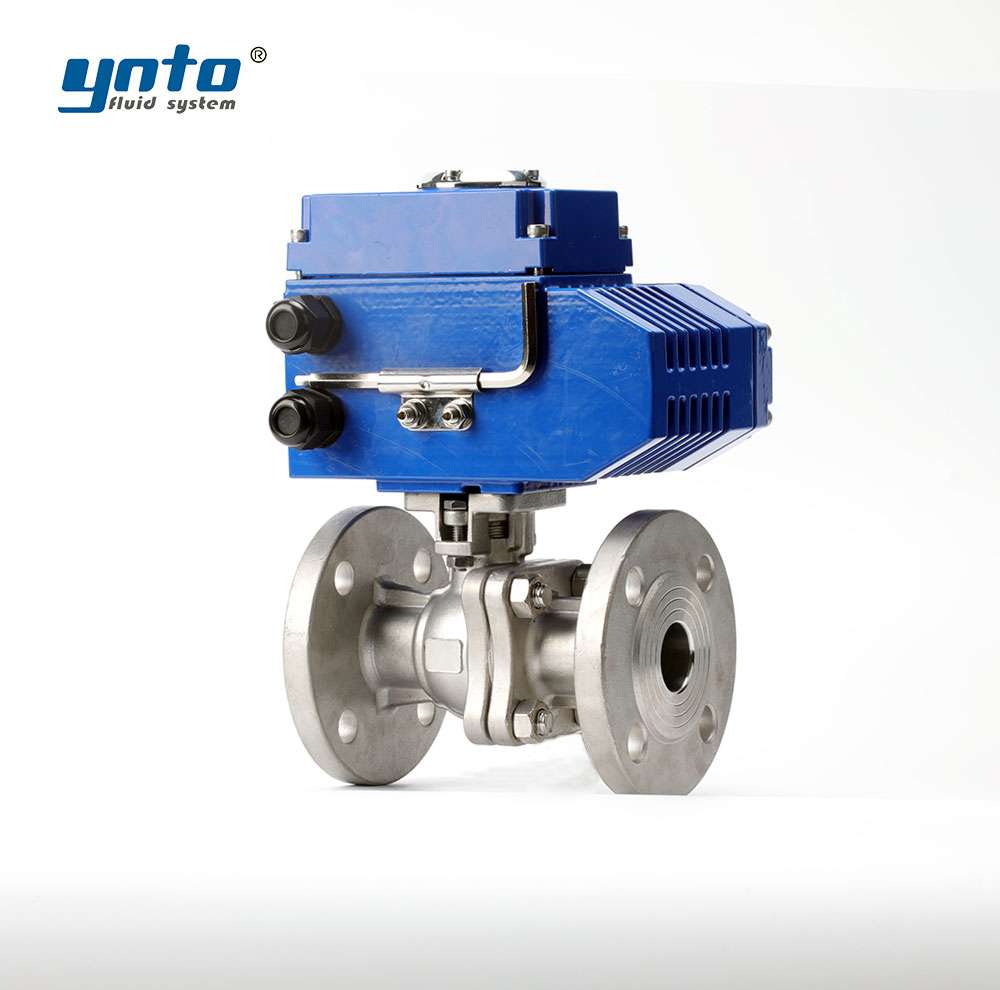

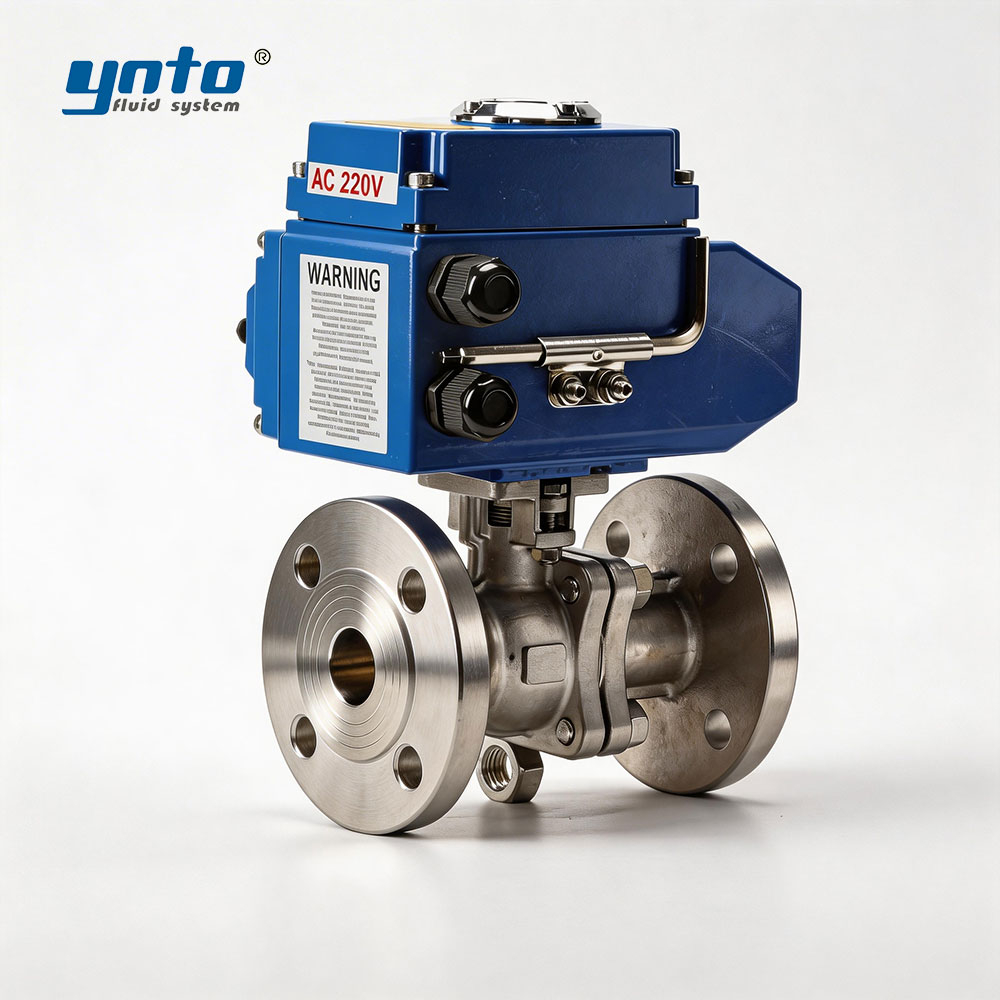

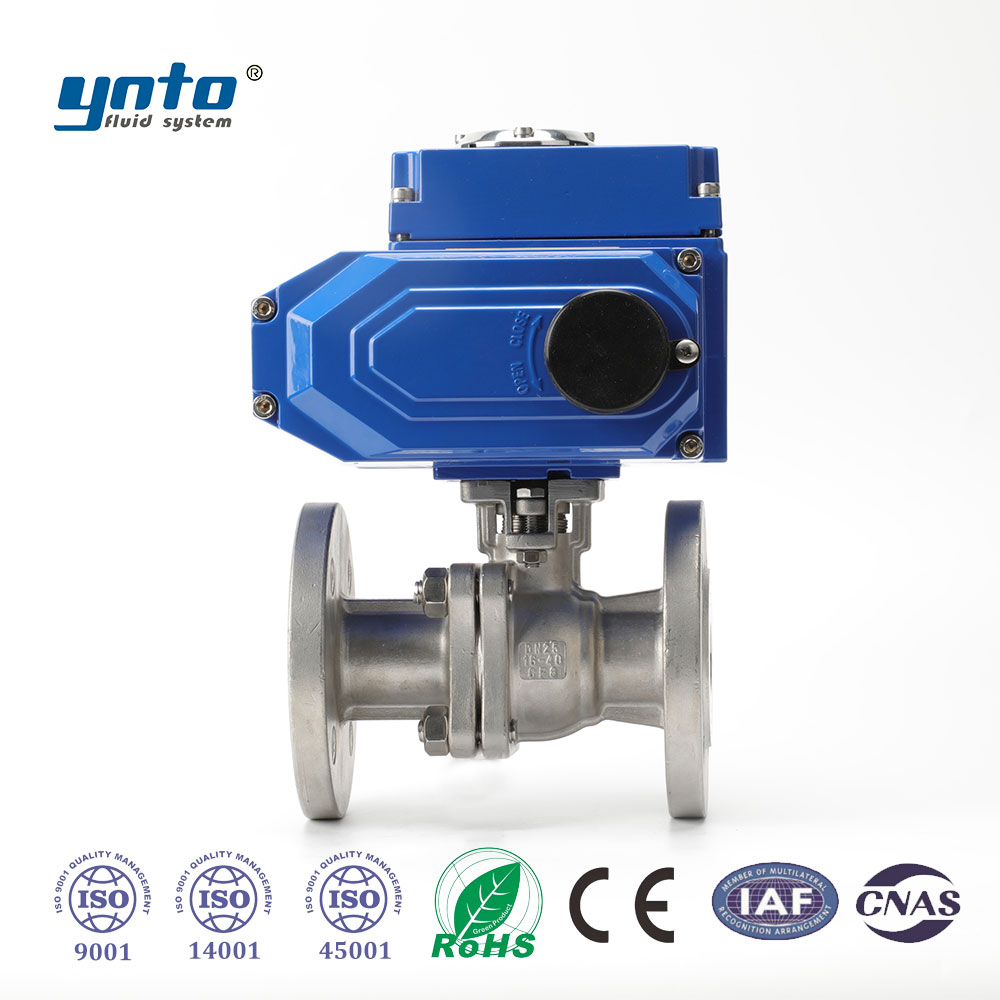

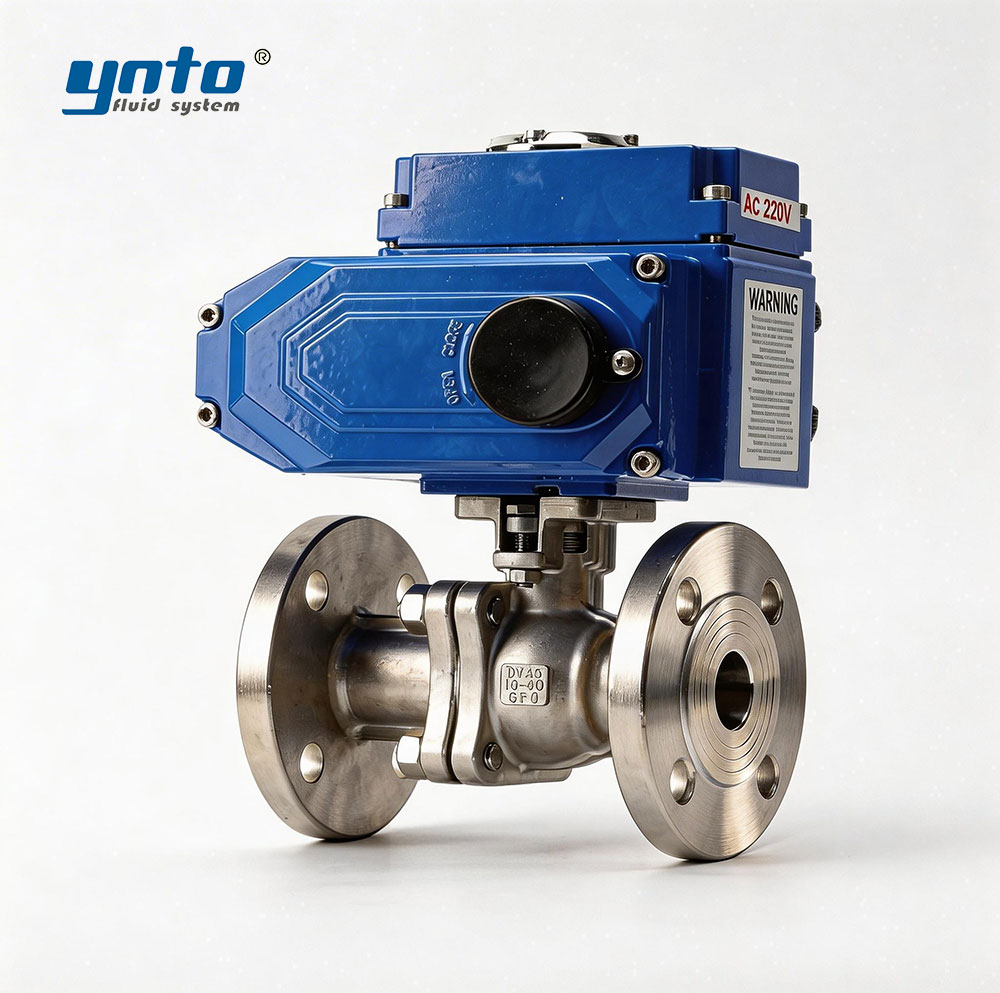

Product Details of Electric Ball Valve with Blue Metal Actuator

Product Highlights

1. High - quality Valve Body Material: This electric ball valve is equipped with a 304 stainless - steel CF8 valve body. As the cast steel grade of 304 stainless steel, CF8 exhibits excellent corrosion resistance, capable of withstanding the erosion of various corrosive media. Whether in acidic, alkaline, or saline environments, it ensures the long - term stable operation of the valve, effectively reducing maintenance costs and failure risks caused by corrosion. Its good mechanical properties enable the valve body to withstand high pressures and adapt to various complex working conditions.
2. Reliable Flange Connection: The flange connection method provides a stable and well - sealed solution for the connection between the valve and the pipeline. Flange connection is easy to install and disassemble, facilitating the replacement and maintenance of the valve in the pipeline system. Through bolt fastening, it ensures that the valve and the pipeline remain tightly connected under high - pressure, high - temperature, or vibrating environments, preventing leakage and ensuring the safe and stable operation of the system.
3. Intelligent Power - off Reset Function: This ball valve is equipped with an advanced power - off reset function. When the system encounters an unexpected power outage, the valve can quickly and automatically reset to the preset state, avoiding potential dangers such as media backflow and abnormal pressure caused by the power failure, providing important safety protection for the entire fluid transportation system. This function is realized through a built - in intelligent control module, which is responsive, rapid, stable, and reliable, ensuring that the valve can return to a safe position in a timely manner under any sudden power - off situation.
4. High Protection Rating: The product has a protection rating of IP65, demonstrating excellent protection capabilities. An IP65 rating means complete protection against dust intrusion, effectively protecting the internal electronic components and mechanical parts of the valve from dust, thus extending its service life. At the same time, it can prevent damage to the valve caused by low - pressure water jets from all directions, making it suitable for various harsh outdoor environments or industrial sites with water - spraying operations. Whether in rainy weather or workshop flushing operations, the valve can operate normally.

Application Fields

1. Chemical Industry: In the chemical production process, it is commonly used in the pipelines for transporting various corrosive chemicals. Due to its corrosion resistance and reliable sealing performance, it ensures the safety and continuity of chemical production.
2. Oil and Gas Industry: It is suitable for the exploration, transportation, and processing of oil and gas. In high - pressure and highly corrosive working environments, its high - quality valve body material and reliable connection method can ensure the stable operation of the valve and guarantee production safety.
3. Water Treatment Industry: Whether in sewage treatment plants, waterworks, or industrial circulating water systems, this ball valve can play an important role. Through precise flow control and good sealing performance, it realizes the effective treatment and transportation of water.
4. Power Industry: In various systems of power plants, it is used to control the flow of steam, water, and other media. Its power - off reset function and high protection rating ensure the reliable operation of the valve in the complex and variable power production environment, guaranteeing the safety and stability of power production.
