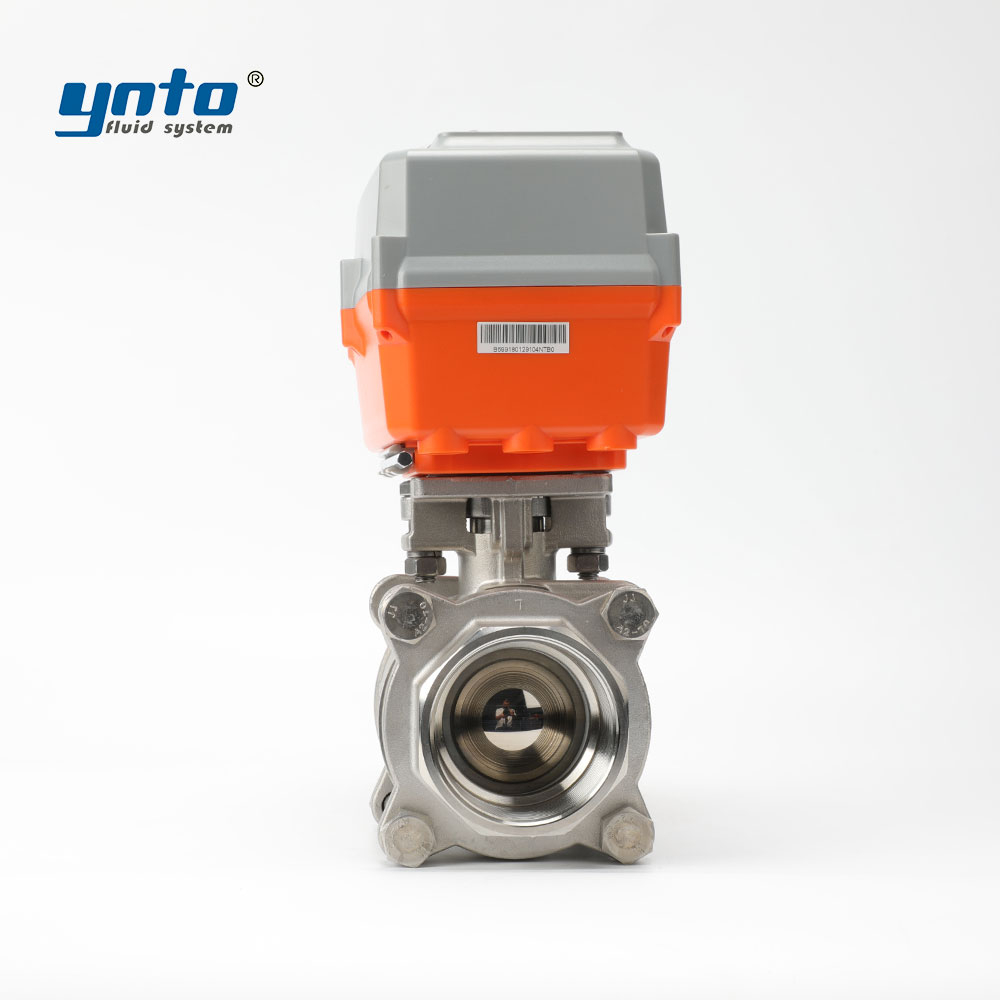

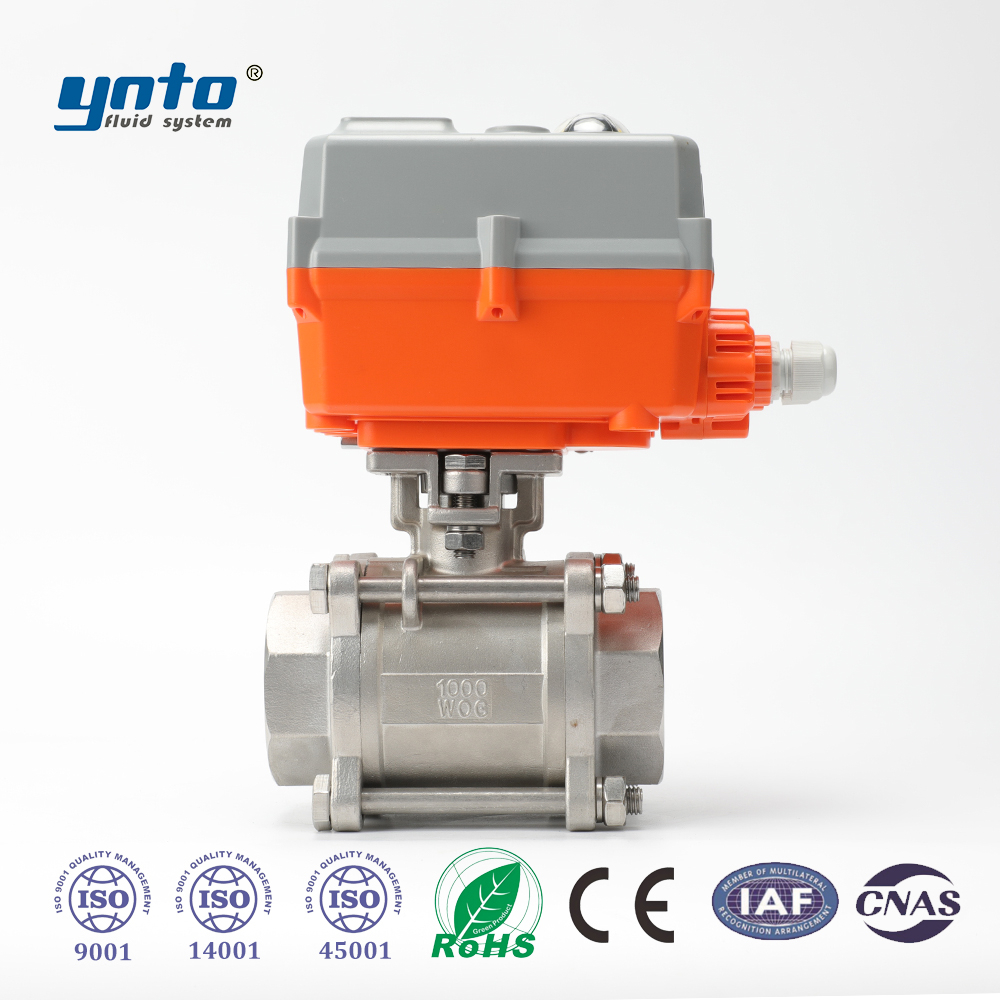

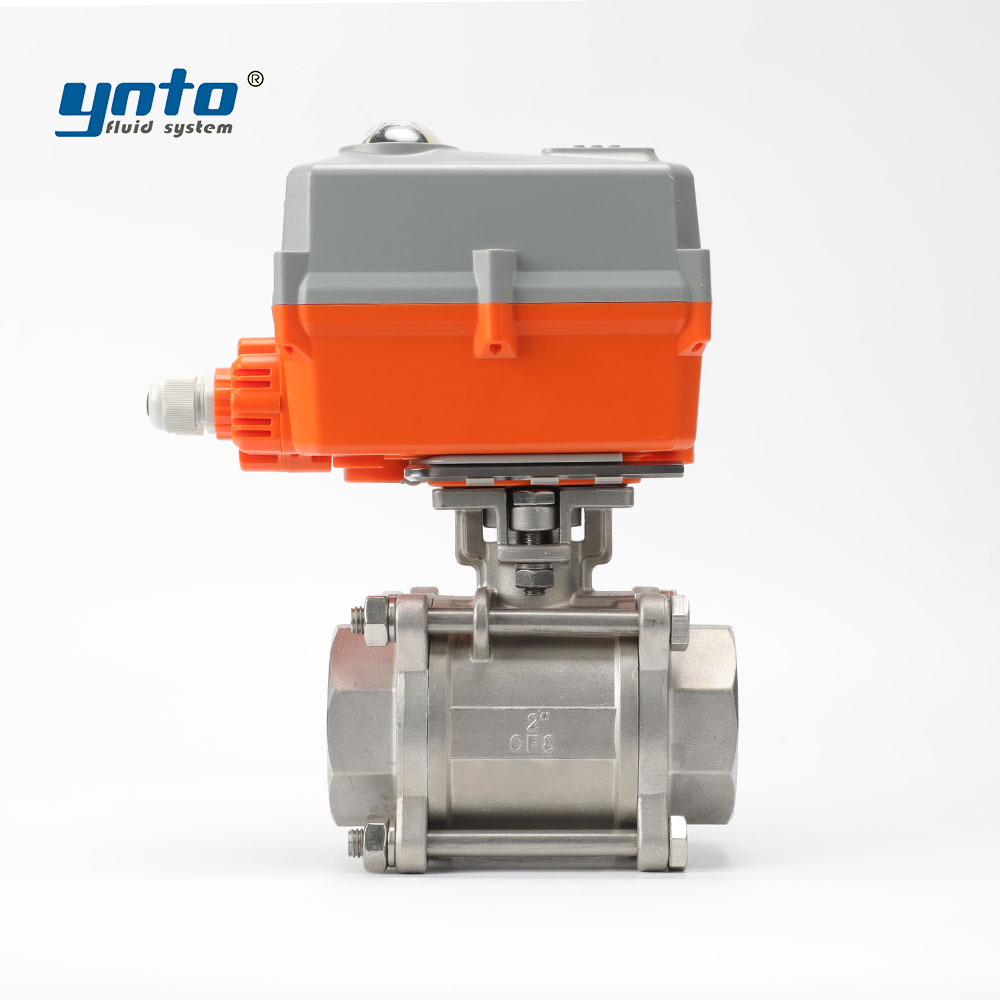

304 Stainless Steel Electric Regulating Ball Valve, Supports RS485, Three-piece G-thread Type
In summary, this three - piece electric ball valve provides users with a comprehensive, efficient, and reliable fluid control solution through its high - quality 304 stainless - steel valve body, convenient G - thread connection, practical functions such as power - off reset and control, regulation, and feedback, as well as the RS485 communication interface and high - level IP67 protection rating. Whether in complex industrial production environments or in occasions with high requirements for control accuracy, it can demonstrate excellent performance and is a trustworthy high - quality product.
Description
Product Details of Three - piece Electric Ball Valve
Product Overview
This three - piece electric ball valve is a high - performance and multi - functional fluid control device designed to meet the needs of various complex industrial environments and precise control requirements. With its high - quality materials, advanced functions, and reliable protection performance, it demonstrates excellent application value in numerous industries.
Product Features

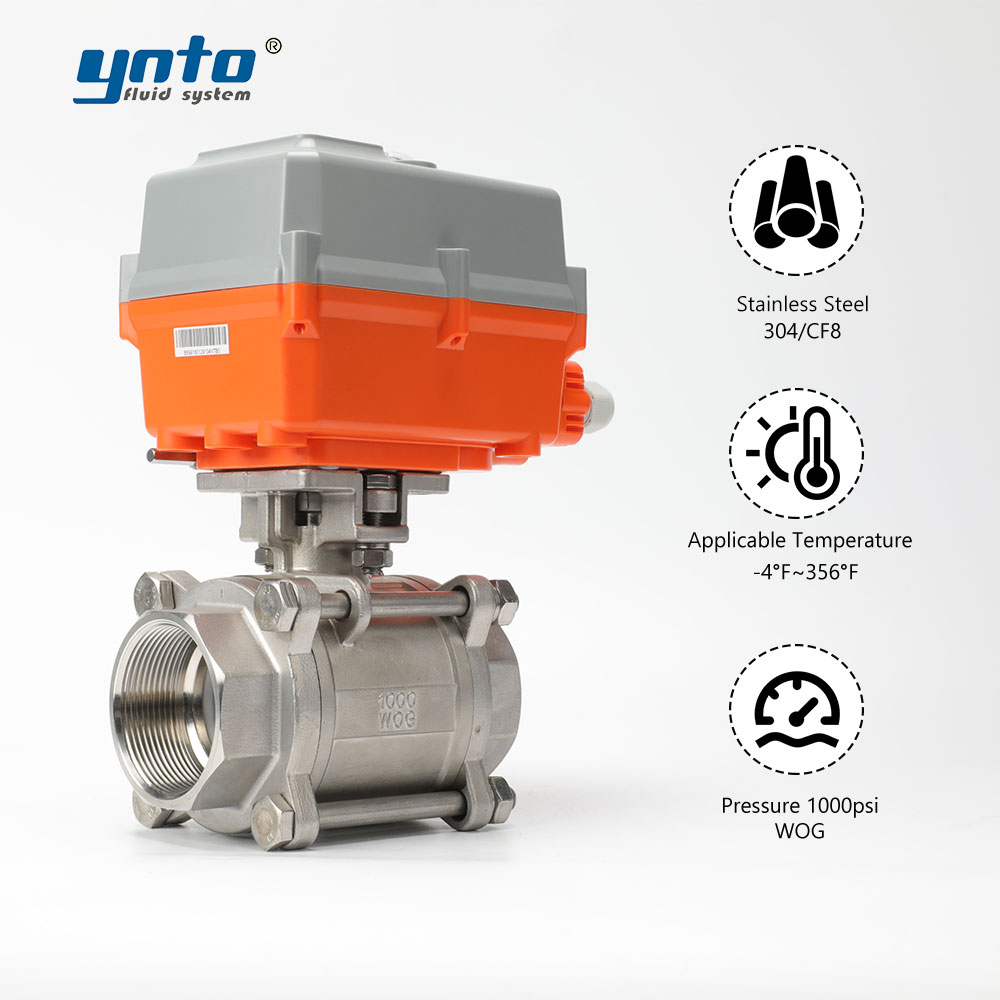

1. High - quality 304 Stainless - steel Valve Body
The valve body is made of high - quality 304 stainless steel, which is renowned for its excellent corrosion resistance. It can withstand the erosion of various chemicals, humid environments, and general corrosive media. This not only ensures the stability and reliability of the valve during long - term use but also significantly extends its service life and reduces maintenance costs. At the same time, 304 stainless steel has good mechanical properties, enabling it to withstand high pressures and adapt to pipeline systems with different pressure ratings.
2. G - thread Connection
Equipped with G - thread interfaces, this connection method has wide versatility in industrial pipeline systems. The design characteristics of G - threads make the connection between the valve and the pipeline tight and convenient. Without the need for complex installation tools and techniques, a reliable connection can be quickly achieved. In addition, the G - thread connection can effectively prevent media leakage, ensuring the safety and stability of fluid transportation under various working conditions.
3. Power - off Reset Function
The ball valve is equipped with an advanced power - off reset function. When the system encounters an unexpected power outage, the valve will automatically and quickly reset to the preset safe state, avoiding potential dangers such as media backflow and abnormal pressure caused by power outages. This provides important safety protection for the entire fluid control system. This function is realized through a built - in intelligent control module, which features fast response and high stability. Under any sudden power - off situation, the valve can be ensured to return to the safe position in a timely manner.
4. Control, Regulation, and Feedback Function
It supports control, regulation, and feedback functions, enabling the valve to accurately respond to external control signals and achieve precise adjustment of parameters such as fluid flow rate and pressure. Through built - in sensors and feedback mechanisms, the valve can monitor its own operating status in real - time and feed relevant information back to the control system. This allows operators to promptly understand the working conditions of the valve and make accurate adjustments and controls. This function provides strong support for the realization of automated and intelligent fluid control, meeting the high - precision control requirements of modern industrial production.
5. RS485 Communication Interface
It has an RS485 communication interface, a standard interface widely used in the industrial communication field. Through the RS485 interface, this ball valve can be easily connected to other devices (such as PLCs, host computers, etc.) to achieve remote monitoring and control. This communication method has the advantages of long transmission distance and strong anti - interference ability, allowing operators to perform real - time operations and management of the valve in a control room far away from the site, greatly improving the convenience and efficiency of the production process.
6. High Protection Rating IP67
The protection rating reaches IP67, indicating that the valve has excellent protection performance. The "6" in "IP67" means complete protection against dust ingress, effectively protecting the internal electronic components and mechanical parts of the valve from dust. The "7" indicates that the valve can be immersed in water at a certain depth for a short time without being affected, having good waterproof performance. The high protection rating enables the valve to adapt to various harsh environmental conditions. Whether in dusty industrial plants, humid outdoor environments, or places where water splashing may occur, it can operate reliably.
Application Fields
With its excellent performance and rich functions, this three - piece electric ball valve is widely used in many industries, including chemical, petroleum, natural gas, water treatment, food and beverage, and pharmaceutical industries. In the chemical industry, it is used to control the transportation of corrosive chemicals. In the petroleum and natural gas fields, it realizes flow control during the exploration, transportation, and processing of oil and gas. In water treatment systems, it precisely adjusts the purification, distribution, and discharge of water. In the food and beverage and pharmaceutical industries, it meets the requirements for fluid transportation and control with strict hygiene standards.
