Blue Electric Actuator Lug Wafer Type Metal Butterfly Valve, Ductile Iron Casting with PTFE Seal
In summary, this blue electric actuator lugged wafer - type metal butterfly valve, with the durability of its ductile iron valve body, the reliable performance of its PTFE seal, the precise drive of its blue electric actuator, the convenient installation and maintenance of its lugged wafer - type connection, the safety guarantee of its power - off reset function, and the environmental adaptability of its IP65 protection rating, provides a comprehensive, efficient, and reliable fluid control solution for various industries. No matter what complex working conditions and harsh environments it faces, it can demonstrate excellent performance and is a trustworthy high - quality product.
Description
Blue Electric Actuator Lugged Wafer - type Metal Butterfly Valve: The Perfect Integration of Excellent Performance and Reliable Quality
Product Features

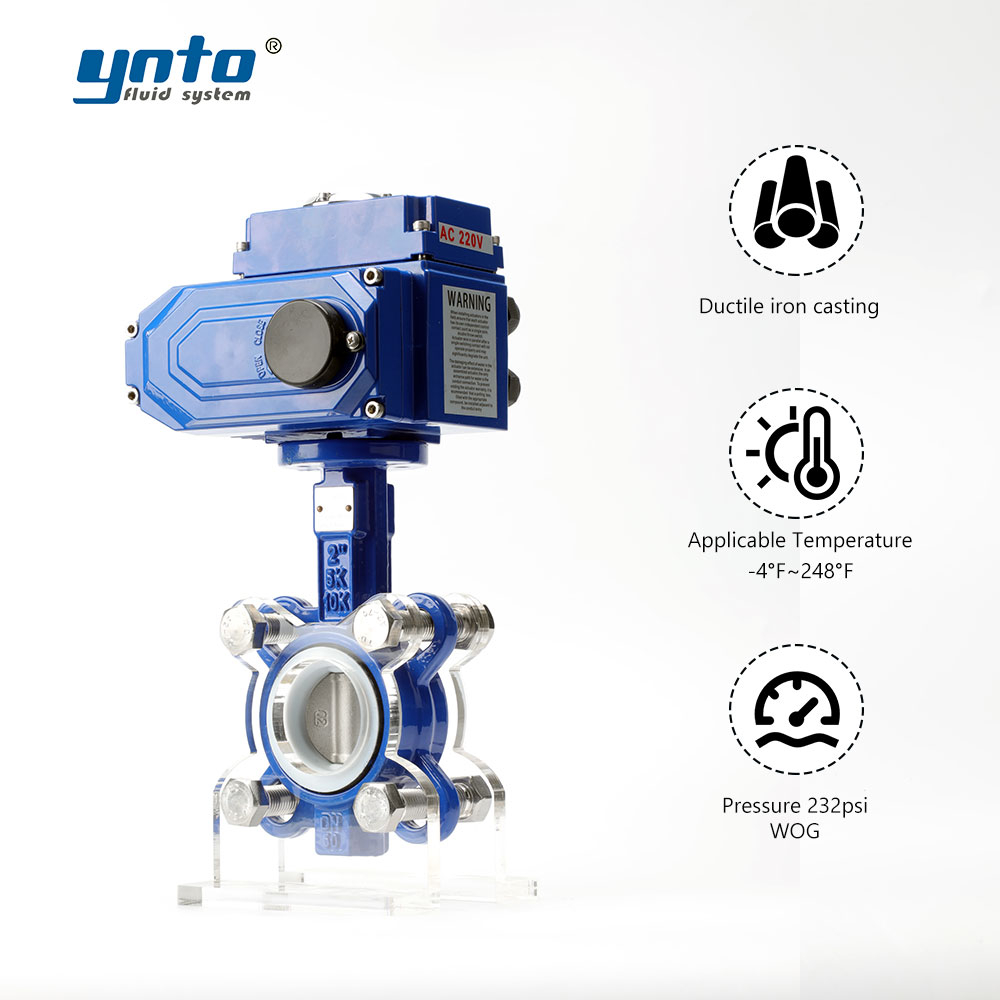

1. High - quality Ductile Iron Valve Body
This butterfly valve features a valve body made of ductile iron. Ductile iron exhibits excellent mechanical properties, achieving an ideal balance between strength and toughness. Compared with ordinary cast iron, the ductility of ductile iron is significantly improved, enabling it to withstand higher pressures and impact forces, effectively reducing the risk of valve body rupture in high - pressure or vibrating environments. This characteristic makes the butterfly valve suitable for a variety of industrial applications, including water supply and drainage, HVAC (Heating, Ventilation, and Air - Conditioning), and fire - fighting systems, ensuring stable operation under different working conditions and laying a solid foundation for the reliable operation of the system.
2. PTFE Sealing Technology
Polytetrafluoroethylene (PTFE) is used as the sealing material. PTFE is renowned for its excellent chemical stability. It hardly reacts with any chemical substances and has a strong resistance to various corrosive media. Whether facing acidic, alkaline, or organic solvents, the PTFE seal can ensure that the sealing performance of the butterfly valve remains unaffected, effectively preventing media leakage. In addition, PTFE has a low coefficient of friction, which makes the opening and closing of the valve smoother, reduces wear, and further extends the service life of the seal and the entire valve.
3. Blue Electric Actuator
Equipped with a blue electric actuator, it not only has a unique appearance for easy identification but, more importantly, possesses a powerful and precise driving ability. The electric actuator can quickly respond to control signals, achieving rapid opening and closing of the valve to meet the requirements of industrial production for valve operation speed. At the same time, through advanced control technology, the valve opening can be precisely adjusted to achieve accurate control of fluid flow. Moreover, the blue electric actuator features a compact design, occupying less space, which is convenient for installation and maintenance in various complex pipeline layouts.
4. Lugged Wafer - type Connection
The lugged wafer - type connection method endows the butterfly valve with unique advantages. The wafer - type design makes the valve installation simple and quick. It only needs to be clamped between two pipeline flanges and fastened with bolts to complete the installation, effectively saving installation space, especially suitable for pipeline systems with limited space. The lug design further enhances the connection stability. When subjected to the fluid pressure inside the pipeline and external vibrations, it can ensure a tight connection between the valve and the pipeline, preventing loosening and leakage. Additionally, this connection method facilitates the disassembly and replacement of the valve in the pipeline system, providing great convenience for later maintenance and repair work.
5. Power - off Reset Function
This butterfly valve is equipped with an advanced power - off reset function, which is an important feature to ensure the safe operation of the system. When the system encounters an unexpected power outage, the valve will rapidly and automatically reset to the preset safe state. This function effectively avoids potential dangers such as media backflow and abnormal pressure caused by power outages, providing reliable safety protection for the entire fluid transportation system. The power - off reset function is achieved through a built - in intelligent control module, which is characterized by rapid response and high reliability. Whenever a power outage occurs, it ensures that the valve returns to the safe position accurately and in a timely manner, maintaining the safety and continuity of the production process.
6. IP65 Protection Rating
The protection rating reaches IP65, demonstrating excellent protection performance. The "6" in "IP65" means complete protection against dust ingress, effectively protecting the internal electronic components and mechanical parts of the valve from dust erosion and extending the valve's service life. The "5" indicates that the valve can prevent damage caused by low - pressure water jets from all directions, having good waterproof performance. This protection rating enables the butterfly valve to adapt to various harsh environmental conditions. Whether in dusty industrial plants, humid outdoor environments, or places with potential water - spraying operations, it can operate stably and reliably.
Application Fields
With the above - mentioned outstanding features, this blue electric actuator lugged wafer - type metal butterfly valve is widely used in the following industries:
- Water Supply and Drainage Industry: In urban water supply and sewage treatment systems, this butterfly valve can be used to control the on - off and flow regulation of water. The high strength and corrosion resistance of the ductile iron valve body, as well as the reliability of the PTFE seal, ensure that the valve can operate stably and prevent leakage when in long - term contact with water and sewage. The power - off reset function and IP65 protection rating guarantee the safety and reliability of the water supply and drainage system in case of sudden power outages or harsh environments.
- HVAC System: In the HVAC system, it is used to regulate the flow of air and water to achieve precise control of temperature and humidity. The precise control ability of the blue electric actuator, combined with the convenient installation and maintenance characteristics of the lugged wafer - type connection, makes this butterfly valve an ideal flow - control device in the HVAC system. Its protection rating ensures that the valve can work normally under different environmental conditions, guaranteeing the stable operation of the HVAC system.
- Fire - fighting System: In the fire - fighting system, this butterfly valve plays a crucial role. The high compressive resistance of the ductile iron valve body and the reliability of the PTFE seal ensure that in case of a fire, the valve can be quickly opened to stably deliver fire - fighting water and prevent leakage. The power - off reset function can ensure that the valve is in a safe state in an emergency, providing strong support for fire - fighting work. The IP65 protection rating enables the valve to be in a standby state at any time in harsh outdoor environments or humid indoor environments, ensuring the reliability of the fire - fighting system.
