Metal Butterfly Valve

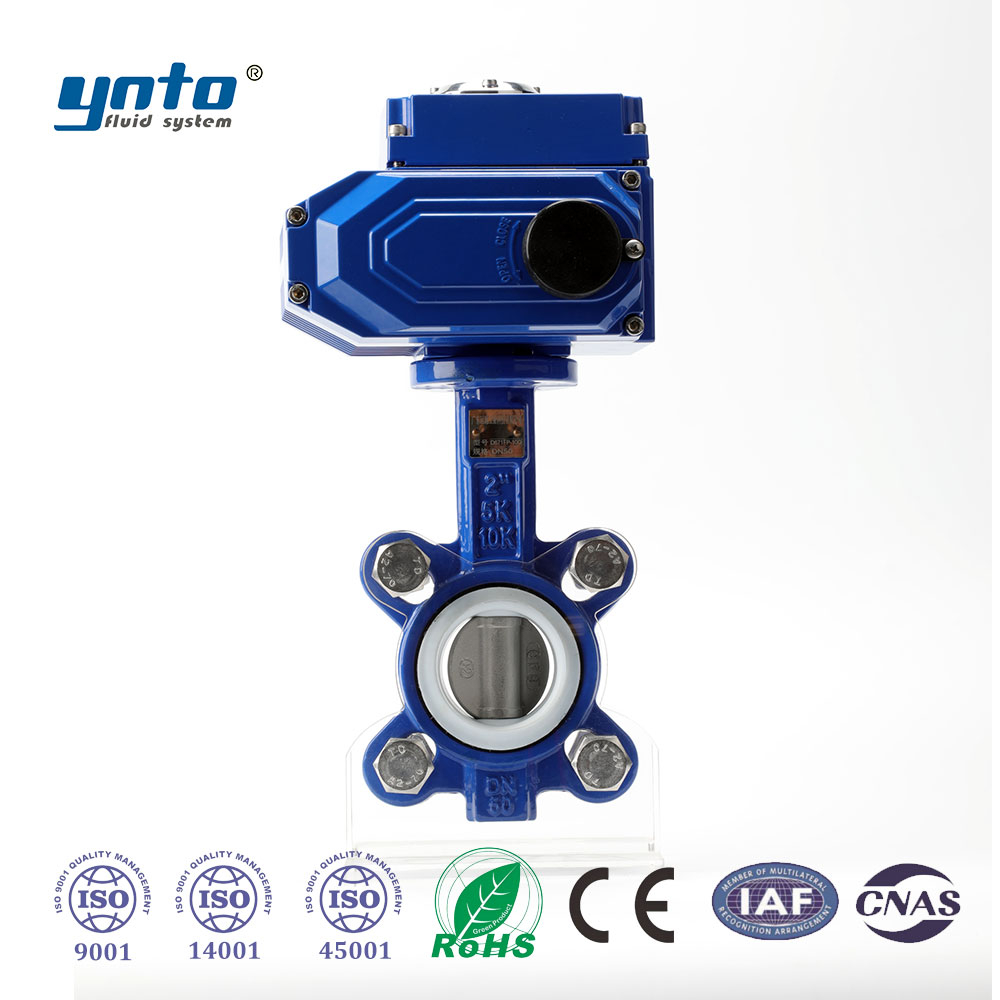

Electric Wafer Type Butterfly Valve
In summary, this electric wafer - type lugged butterfly valve provides a comprehensive, efficient, and reliable fluid control solution for various industries with its unique wafer - type lugged design, practical power - off reset function, advanced control, regulation, and feedback function, as well as the high protection rating of IP67. No matter what complex working conditions and harsh environments it faces, it can demonstrate excellent performance. It is a trustworthy high - quality product that meets the high - performance, intelligent, and reliable requirements of modern industries for valves.
Description
Electric Wafer - type Lugged Butterfly Valve: The Perfect Integration of Excellent Performance and Advanced Functions
Product Features
1. Unique Wafer - type Lugged Design
This electric wafer - type butterfly valve features an innovative lugged structure, which offers significant advantages. The wafer - type connection allows the valve to fit tightly against the pipeline during installation, effectively saving space, making it especially suitable for pipeline systems with limited space. The lug design further enhances the stability of the connection between the valve and the pipeline. By fastening bolts through the lugs, not only is the connection reliability ensured, but it also facilitates the disassembly and replacement of the valve in the pipeline system, providing great convenience for maintenance and repair work. In addition, the lugged structure can better withstand the pressure and impact of the fluid in the pipeline, ensuring the stable operation of the valve under various working conditions.
2. Power - off Reset Function
Equipped with an advanced power - off reset function, it provides crucial protection for the safe operation of the system. When the system encounters an unexpected power outage, the valve will rapidly and automatically reset to the preset safe state. This function effectively avoids potential dangers such as media backflow and abnormal pressure caused by power outages, ensuring the safety of the entire fluid transportation system. This function is achieved through a built - in intelligent control module, which is characterized by rapid response and high reliability. Whenever a power outage occurs, it ensures that the valve returns to the safe position accurately and in a timely manner, thus maintaining the continuity and stability of the production process.
3. Control, Regulation, and Feedback Function
It supports precise control, regulation, and feedback functions, enabling the valve to accurately respond to external control signals. Through close cooperation with the automated control system, it can achieve precise adjustment of key parameters such as fluid flow rate and pressure, fully meeting the needs of various complex industrial production processes and application scenarios. The high - precision sensors and feedback mechanisms built into the valve can real - time monitor information such as the valve opening and fluid status, and promptly and accurately feed these data back to the control system. Operators can make real - time adjustments to the valve based on the feedback information, ensuring that the system always operates in an optimal state, improving production efficiency and product quality, and meeting the strict requirements of modern industries for automated and intelligent control.
4. High Protection Rating IP67
The protection rating reaches IP67, demonstrating excellent protection performance. The "6" in "IP67" means complete protection against dust ingress, effectively protecting the internal electronic components and mechanical parts of the valve from dust erosion and extending the valve's service life. The "7" indicates that the valve can remain undamaged when immersed in water at a certain depth for a short period, featuring outstanding waterproof performance. This high protection rating enables the valve to adapt to various harsh environmental conditions. Whether in dusty industrial plants, humid outdoor environments, or places with potential water - immersion risks, it can operate stably and reliably, ensuring the normal use of the valve in different working environments.
Application Fields
With its excellent performance, this electric wafer - type lugged butterfly valve is widely used in numerous industries:
- Petrochemical Industry: In the petrochemical production process, various corrosive media and high - pressure, high - temperature working environments are often involved. The robust structure and reliable sealing performance of this butterfly valve enable it to effectively control the flow of various fluids, ensuring the safety and stability of the production process. The power - off reset function can respond quickly in case of sudden power outages, avoiding safety accidents caused by media backflow; the control, regulation, and feedback function can accurately adjust the flow rate according to changes in the production process, improving production efficiency.
- Power Industry: In the pipeline systems for transporting media such as steam and water in power plants, high requirements are placed on the reliability and precise control of valves. This butterfly valve can withstand high - temperature and high - pressure working conditions. Through the control, regulation, and feedback function, it can achieve precise adjustment of the flow rate of steam and water, ensuring the stable operation of power - generation equipment. The high protection rating of IP67 ensures that the valve can work reliably for a long time in complex outdoor environments, reducing maintenance costs.
- Sewage Treatment Industry: During the sewage treatment process, effective control and regulation of sewage, sludge, and other media are required. The wafer - type installation method of this butterfly valve facilitates installation and maintenance in the narrow space of sewage treatment equipment. Its good sealing performance can prevent sewage leakage and protect the environment. The power - off reset function and control, regulation, and feedback function ensure that the sewage treatment system can still operate stably in case of power outages or process changes, guaranteeing the efficiency and quality of sewage treatment.
