APAC Brewery Boosts Efficiency with Electric and Pneumatic Valves

Introduction

The brewing industry is thriving in the Asia-Pacific (APAC) region, where breweries are modernizing their operations to meet growing demand and stringent quality standards. One APAC brewery recently underwent a process upgrade, implementing advanced valve solutions to enhance efficiency, consistency, and sanitation. This case study explores how the brewery leveraged electric valves, sanitary diaphragm valves, and pneumatic valves to optimize its production – from mash tun to fermentation – while maintaining strict hygiene and control.

Automating the Brewing Process with Electric Valves

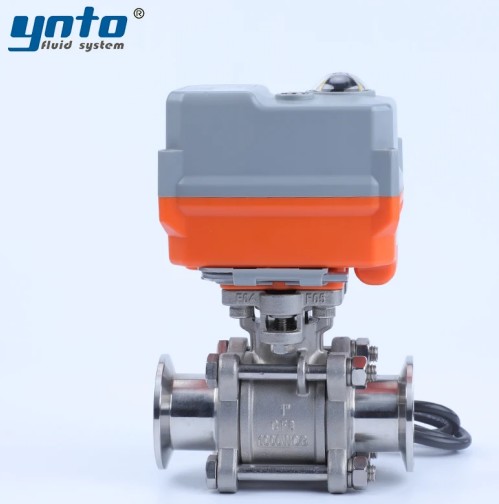

Traditionally, many brewing processes rely on manual valve operation, which can lead to inconsistencies in temperature and flow control. To overcome these challenges, the APAC brewery installed several automated electric valves across its facility. These valves, equipped with electric actuators, allowed the brewers to remotely control flow rates and toggle valves on or off with precision. For example, electric actuators were fitted onto stainless steel ball valves on the mash tun’s inlet and outlet lines. With a centralized control system, the brewmasters could adjust water and wort flow at the push of a button, ensuring each batch follows the exact recipe parameters. The improved accuracy reduced human error and resulted in more consistent brew quality.

By using electric valves, the brewery also improved safety and efficiency. Automated shut-off sequences were programmed for critical stages – such as when a fermentation tank fills up – preventing spills or overflows. The elimination of manual intervention not only saved labor but also minimized exposure of operators to hot liquids and steam. Overall, these control valves (valves that modulate fluid flow rather than simply on/off) gave the brewery fine-tuned command over its process, translating to stable production and higher yield.

Ensuring Hygiene with Sanitary Diaphragm Valves

Maintaining cleanliness is paramount in brewing because any contamination can spoil a batch of beer. The brewery addressed this by integrating several diaphragm valves in areas requiring strict sanitary conditions. Sanitary diaphragm valves are designed with a smooth, crevice-free internal surface and a flexible diaphragm that isolates the fluid from moving parts. This design makes them ideal for hygienic applications – there are no pockets for residues to collect, and they can be easily sterilized during Cleaning-in-Place (CIP) cycles.

In practice, the brewery used stainless steel sanitary diaphragm valves on its yeast dosing lines and in the filling station where beer is packaged. Unlike some traditional valve types, diaphragm valves do not introduce contamination or metallic particles into the product stream, preserving the beer’s purity and flavor. Each diaphragm valve was connected to the brewery’s automated control system, enabling remote operation and integration into CIP sequences. During cleaning cycles, for instance, these valves would automatically open and close in the correct sequence to flush lines with cleaning solution, rinse, and sanitize without manual intervention. The result was a significant reduction in contamination risk and a simplified maintenance routine for the staff.

Fast and Reliable Flow Control with Pneumatic Valves

Certain parts of the brewing process demand rapid valve actuation and fail-safe reliability. For these situations, the brewery deployed pneumatic valves – valves actuated by compressed air – especially on lines where quick on/off action is critical. Pneumatic actuators are known for their fast response times and are inherently safe in flammable environments since they do not rely on electricity at the point of actuation (important in areas with alcohol vapors). The APAC brewery installed pneumatic butterfly valves on the wort cooling system and in the carbonation process. These valves could snap open or shut almost instantaneously, precisely controlling the flow of wort through the heat exchanger and the injection of CO2 during carbonation.

One advantage of pneumatic valves is their fail-safe design. The brewery configured key pneumatic valves to “fail closed” – meaning if air pressure is lost or in an emergency power outage, the valves default to the closed position to prevent any uncontrolled flow or leakage. This was especially useful for critical applications like the steam supply line to the kettle: a pneumatic control valve regulated steam flow, ensuring the boil remained at the right intensity. In the event of a system fault, this pneumatic control valve would close, averting any dangerous over-boil situations. Overall, the use of pneumatic valves contributed to both operational safety and precise process control.

Results and Benefits

After implementing these advanced valve solutions, the Asia-Pacific brewery saw notable improvements in operations. Batch cycle times were reduced by automating many manual steps, which increased the brewery’s output capacity without compromising quality. The enhanced precision from electric valves and pneumatic control valves led to greater consistency in beer flavor and alcohol content from batch to batch. Quality assurance tests showed a decrease in variability, meaning customers could rely on the same great taste every time.

Sanitation efforts also became more effective. By using sanitary diaphragm valves integrated into CIP processes, the brewery significantly lowered the risk of contamination. The cleaning cycles became faster and more reliable, which in turn decreased downtime between batches. Maintenance personnel reported that valves were easier to service because the diaphragm valves and high-quality actuators from YNTO (Guangdong Yuantong Industrial Technology) required less frequent unplanned maintenance. Any necessary repairs or inspections could be performed during scheduled downtime thanks to the predictive alerts provided by the automated system.

In terms of return on investment, the brewery benefitted from reduced product loss (fewer spills and spoiled batches) and energy savings due to optimized process control. The success of this case has encouraged the brewery’s management to plan further upgrades in other areas, such as adding more sensor feedback loops and potentially exploring control valves with advanced positioners for even finer control.

Conclusion

This Asia-Pacific brewery case study demonstrates how upgrading to modern valve technology can transform industrial processes. By incorporating electric, pneumatic, and sanitary diaphragm valves, the brewery achieved a higher level of automation, cleanliness, and control. The project highlights the importance of choosing the right valve solutions for each application – from ball valves with electric actuators for on/off control to pneumatically driven valves for safety-critical functions. Breweries and other food & beverage industries can take inspiration from this success, understanding that investing in advanced fluid control technology not only boosts efficiency but also safeguards product quality.

As demand continues to grow, breweries that embrace such innovations will be better positioned to scale up production while maintaining consistency and safety. For engineers and operations managers in the brewing sector, this case reinforces the value of partnering with experienced valve providers like YNTO, who can deliver tailored solutions ranging from automated electric valves to high-performance pneumatic valves. With the right mix of modern equipment and expertise, even a traditional craft can be elevated to meet the needs of the future.
