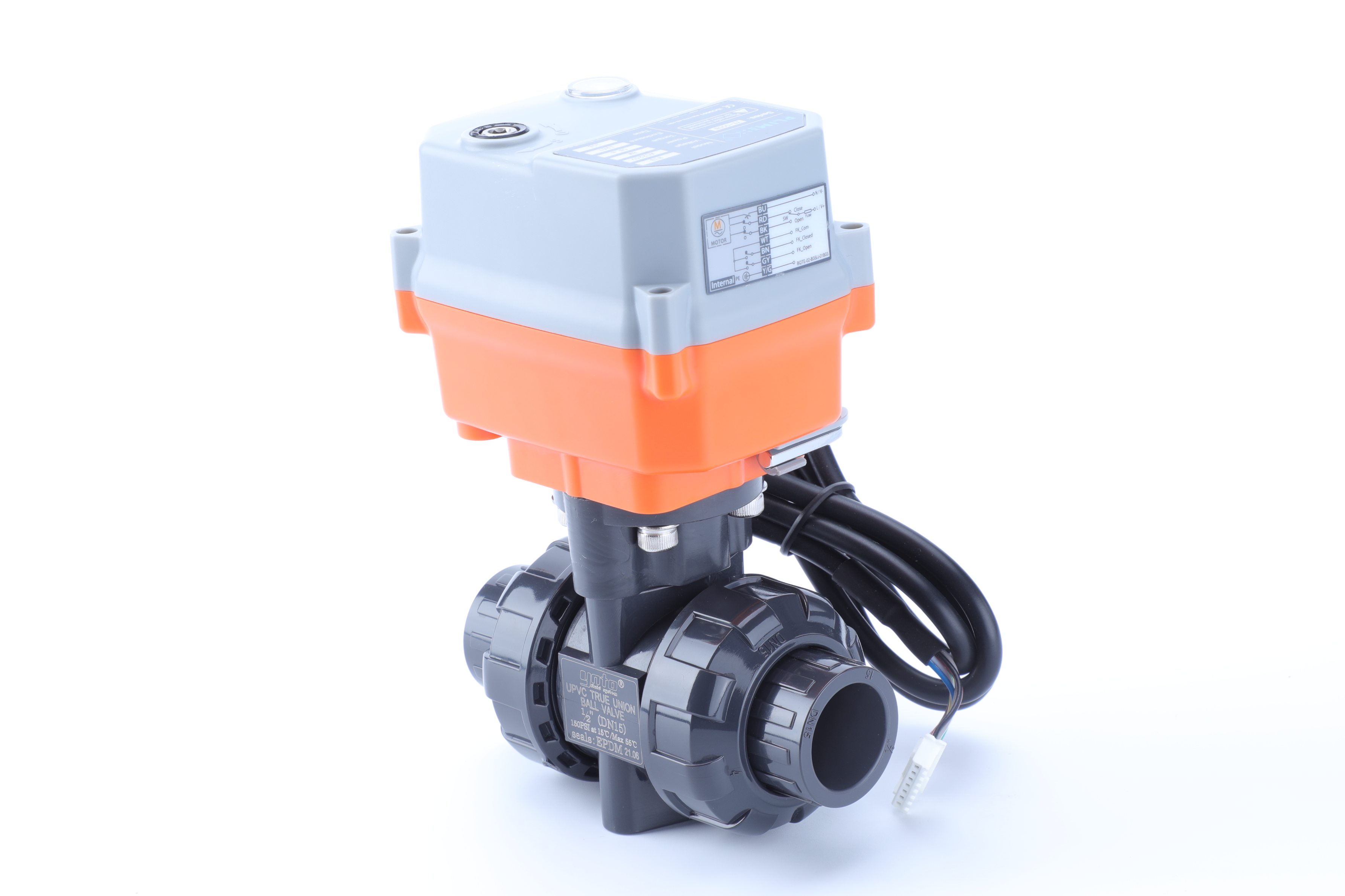

DN15-DN200 UPVC Electric Ball Valve CE Certificated

Are you struggling with valve leakage, frequent maintenance, or unreliable sealing performance in your fluid control system? Our [valve type] is engineered to solve exactly these challenges.
Features of our Electric UPVC Ball Valve:

1.Corrosion‑proof UPVC body – Made from high‑grade unplasticized polyvinyl chloride (UPVC), with full port design.

2.Electric actuator – Compact, IP67 / IP68 rated, available in 24V DC, 220V AC; optional modulating (4‑20mA) or on‑off control.

3. Sealing system – PTFE seats + EPDM / FKM O‑rings, blow‑out proof stem.

4. End connections – True union socket / threaded ends (DIN / ANSI / JIS standards).

5. Auxiliary features – Manual override, visual position indicator, limit switches, and heater (for cold environments).

 Effects of using our effectric UPVC Ball Valve:

UPVC body + full port → Fluid passes with almost no pressure drop; the smooth inner surface prevents scaling, biological growth, or particle adhesion. Electric actuator → Provides remote automated on/off or flow regulation; you can open/close the valve from a control room or PLC system without manual labor.  PTFE/EPDM seals → Create bubble‑tight shutoff even after thousands of cycles; no leakage at the stem or seats. True union design → The valve can be removed for inspection or replacement without disturbing the pipeline alignment.Manual override + position indicator → You can operate the valve by hand during a power outage and see at a glance whether it is open or closed.

Details of our valve advantage: First, Corrosion resistance, our Electric UPVC Valve can resists most acids (HCl, H₂SO₄ up to 30%), alkalis, salts, chlorinated water. Ideal where stainless steel would pit or rust. Second, Light weight . A 2″ electric UPVC ball valve weighs ~2.5 kg, while stainless steel equivalent is ~12 kg. Lower freight, easier handling, less support structure. Third,low maintenance – No scale build‑up, no stem lubrication needed; PTFE seats self‑lubricate. Maintenance interval > 100,000 cycles. What's more, Energy efficient and safe operation– Smooth UPVC ball and low‑friction seats require 40‑50% less torque than metal seated valves → use smaller actuator or save electricity. Actuator IP67, UPVC body non‑sparking → suitable for damp or explosive environments (ATEX option available). Last but not least, Cost effective – Upfront price 40‑60% lower than stainless steel automated valve. Plus lower shipping, installation, and power costs.

While using our Electric UPVC Ball Valve, you can get both  financial benefits and operational benefits.

Lower total cost of ownership (TCO) – Pay less upfront, less for freight, less for electricity, and almost nothing for spare parts over 5‑7 years. No expensive corrosion‑related replacements. Reduced labor cost – No need to send a technician to manually turn valves in a chemical plant. Automate once, benefit for years. Less downtime – The valve won’t rust or jam, so your process keeps running. When maintenance is needed, true union design allows replacement in under 5 minutes. Faster installation – Light weight means one person can carry and mount the valve + actuator without a crane or team. What's more, it is safety and compliance. It can protect you medium, no rust particles, no metal ions leaching into pure water or chemical solutions. Perfect for pharmaceutical, food, or electronics rinse lines. And the operator is safety, for acids or toxic fluids, remote electric operation keeps your staff away from danger. Manual override is only for emergency.We also have a lot of certifications, like CE/ISO9001/ISO14001, making it easy to pass audits.
